140/210 DEGUAN Sliding Door

  • - Place of Origin: Foshan, China
  • - Brand Name: GUANG YUAN, DE YUAN NUO
  • - Model Number: GY001
  • - Frame Material: Aluminium alloy
  • - Open Style: Swing
  • - Mesh Material: Stainless steel and fiberglass
  • - Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
  • - Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
  • - Quality Standard: AS2047
  • - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
  • - Glass Standard: AS2208
  • - Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass

PRODUCT Description

Product Description

Color/Patterm Option

Modern aluminium sliding doors adopt the design of the upper and lower rail sliding grooves. The frame is relatively strong, durable, and resistant to wind deformation. Wholesale aluminium sliding doors is more suitable for high-rise buildings and residential buildings. The sliding door not only has good sealing performance, but also has excellent waterproof and sound insulation performance. It is also very convenient to open and is very suitable for living rooms and balconies.

The effective heat insulation effect of the modern aluminium sliding doors can bring a very comfortable feeling and give us a good mood for daily life and work. When outside is icy and snowy, if you want to enjoy the warmth and comfort in winter, sliding door is your best choice, because it has good thermal insulation effect, which can leave enough heat indoors and expel cold air to outside.

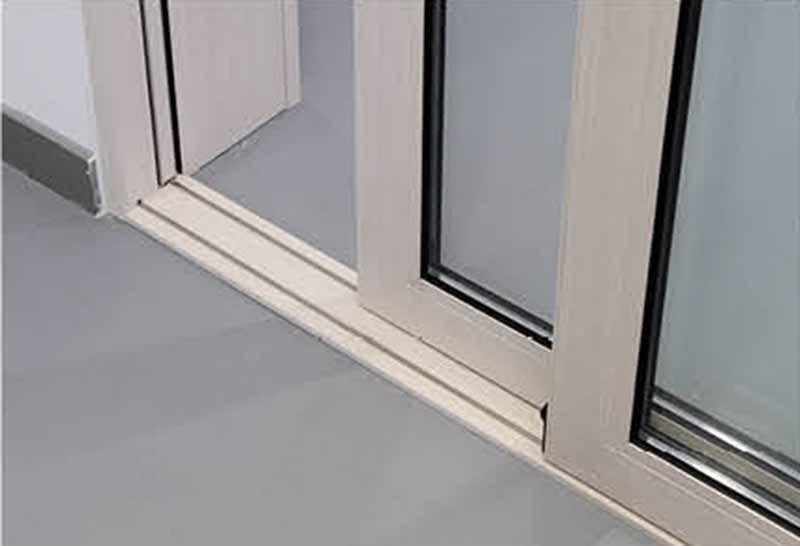

#140/210 DEGUAN Sliding Door adopt high-precision profile, the thickness of the profile is 2.0mm, three tracks can be equipped with metal screen, standard stainless steel rail, optional copper rail, with 5+27A+5 double-layer tempered glass, optional bar, magnetic control louver such as craft glass, the lower rail has a water-retaining edge for waterproof function, and wholesale aluminium sliding doors leaf is equipped with an anti-sway and anti-sway device, which is light and no noise during the sliding process. It is suitable for high-end residences, villas and other garden doors, entrance doors, and balcony doors.

Wholesale aluminium sliding doors with simple overall shape, the atmosphere contains noble, full of philosophical design concepts, highly summarizes the attitude of urban elites on quality life. Modern aluminium sliding door continuing the majestic block design, while using the aspect ratio of the facade ingeniously, extraordinary masterpiece is a simple but not simple realm of creation.

#140/210 DEGUAN Sliding Door  has Luxurious appearance and smooth lines. The use of box fan structure design, better sealing, anti-theft performance. Equipped with inlaid U-shaped stainless steel track, durable, no wear for 20 years. #140/210 DEGUAN Sliding Door uses automotive-grade foam composite tape, watertight, airtight and sound insulation better. There are two rails and three rails to choose from, which can realize the configuration of two rails full glass, three rails full glass, three rails with gold steel net. It can be equipped with electric door control system to realize remote control, infrared sensing and other control functions.

Product Name

140/210 DEGUAN Sliding Door

Manufacturing Standard

AS2047

Quality Certificate

ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS

Aluminium Profiles

6063-T5 high quality thermal/non-thermal break aluminium profiles

Profiles Thickness

1.4mm for windows, 2.0mm for doors

Surface Treatment

Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color

Color

Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors

Glazing Type

tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing

Glazing Thickness

Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm



Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm

Mesh

Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen



Retractable screen, fixed screen and sliding screen

Sealing

Chinese famous brand silicone and EPDM strips

Hardware

KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH

Architrave

Depending on the customer’s requirements

Guarantee

10 years to 20 years

Application

Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses

MOQ

1 set

Packing Details

EPE foam packing and wooden crate packing

Payment Term

1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.



2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.



3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.

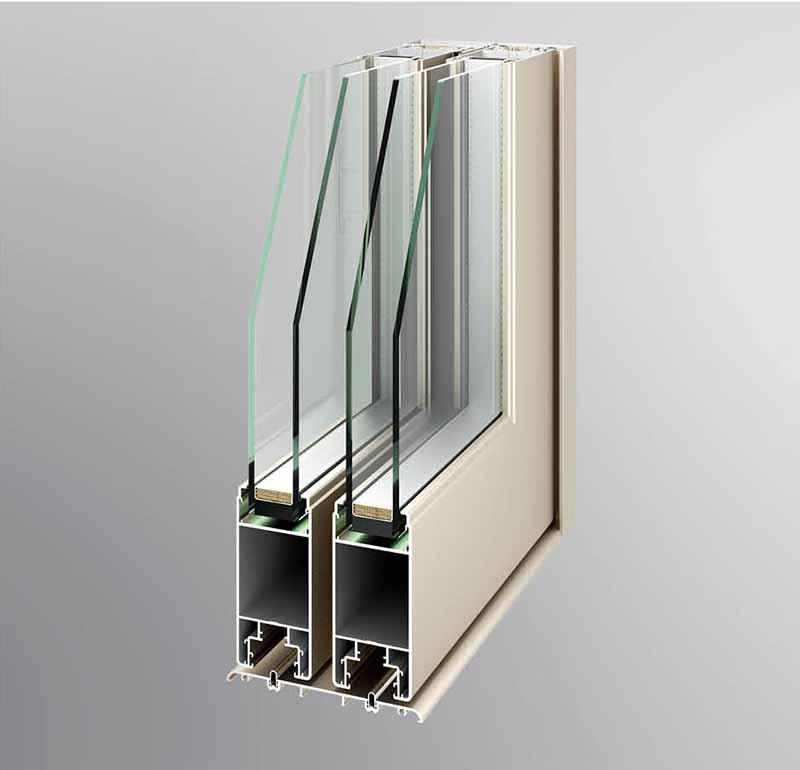

STRUCTURAL PARAMETERS

Profile Thickness

Frame Depth

Sash Width

2.0mm

138mm

90mm

PERFORMANCE PARAMETERS

Heat Insulation(m2·K)

Sound Insulation(DB)

Water Tightness(PA)

Air Tightness

Wind Load(KPa)

4W

45DB

700PA

4.5≤92>3.0

3.5≤P3>4.0

Level 4

Level 4

Level 6

Level 8

Level 8

FAQ

1. Q: Where is your factory located?

A: Our factory is located in Foshan City, China, it takes about an hour from Guangzhou Baiyun Airport to our factory, about an hour from Canton Fair.

2. Q: What is your minimum order quantity?

A: Our minimum order quantity is 1 set.

3. Q: What are the colors available?

A: Our colors are available for our factory colors stock, and can be customized as per customer’s color sample.

4. Q: What is your lead time for production?

A: We can complete the order around 20-45 days.

5. Q: Did you export aluminum windows to overseas countries?

A: We have exported our profiles to South East Asia, Middle East, East Europe, South America and Africa, etc.
