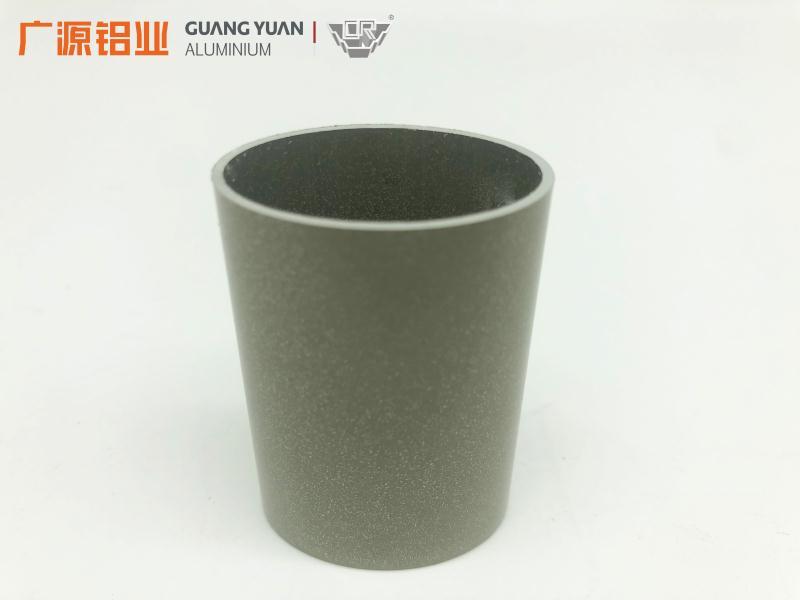

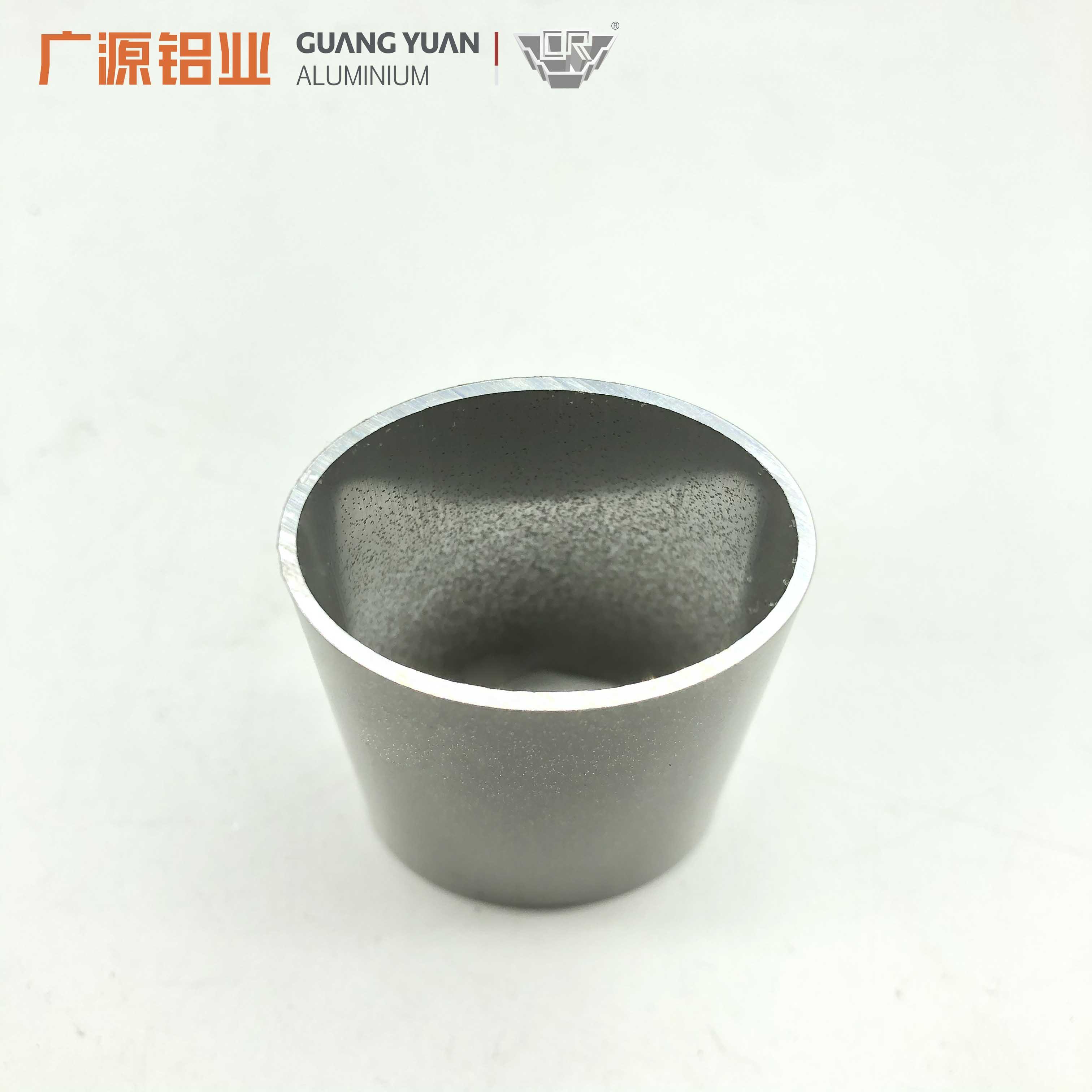

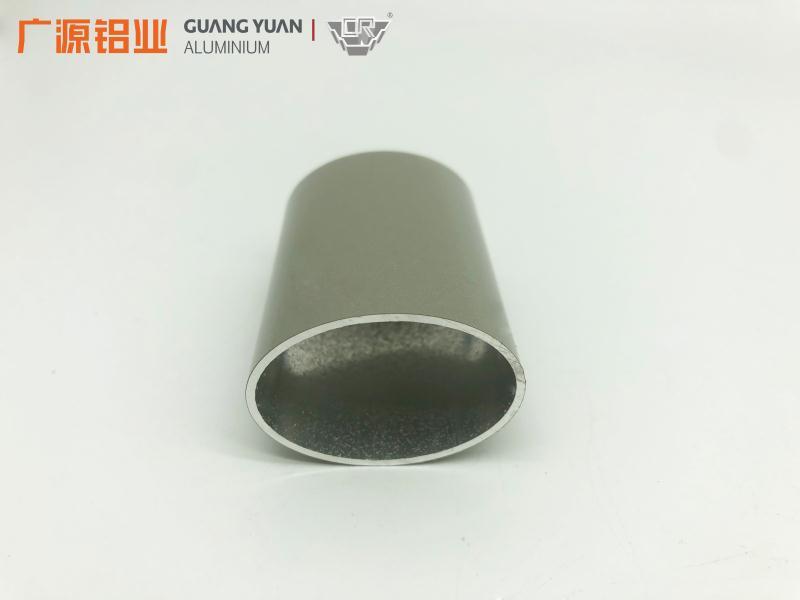

Flat Oval Aluminium Tube

- Place of Origin: Foshan, China
- Brand Name: GUANG YUAN
- Model Number: GY001
- Grade: 6000 Series
- Alloy or Not: Is Alloy
- Temper: T4-T6
- Surface Treatment:
- Mill Finish, Anodizing, Electrophoresis, Powder Coating, Polishing, Brush, Wood Grain, Fluorocarbon Coating, etc.
- Deep Processing, Precise Cutting, Drilling, Bending, Punching, CNC and Aluminium Alloy Profile Fabrication
- Quality Standard: China National Standard GB/T 5237-2008
- Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- Application: flat oval aluminium tube
- Use purpose: Construction Buildings, villas and residential houses

PRODUCT Description

Guangyuan Aluminum Co., Sells the highest quality flat oval aluminium tube. Those profiles are a good substation for steel and others when you need to figure out the weight problem with steel profiles. Also, flat oval aluminium tube are highly resistant to corrosion, which adds to its overall value.

flat oval aluminium tube have various styles and shapes, which can be applied in different industries are. Some of which include:

- Scaffolding

- Machine Parts

- Furniture Applications

- Transportation

- Marine

- Solar & Renewable Energy

- Structural components

- Frames

- Others

Guangyuan Aluminum Co., Ltd are well equipped with a flat oval aluminium tube dies, which are with a range of 0.5mm thickness to 4mm thickness for the customer to select. Please see the following detail drawings to find out your preference. Even if your desirable profiles are not on the list in our catalog, as an experienced aluminium extrusion company, we are flexible to make your custom aluminum extrusions base on your dimensions.

Contact Person: Mr. Adam Lin

Contact Info: +86-13630007855 (WeChat/Whatsapp)

Email：gyaluminium@hotmail.com

flat oval aluminium tube Standards								flat oval aluminium tube Standards
NO	D	T	Weight(kg/m)	NO	D	T	Weight(kg/m)	NO	D	T	Weight(kg/m)	NO	D	T	Weight(kg/m)
1	5.9	Round bar	0.074	16	16	2.0	0.239	31	25	4	0.720	46	50	1.6	0.664
2	6	Round bar	0.077	17	18.7	2.85	0.385	32	25.35	1.13	0.232	47	50	2.0	1.875
3	7	Round bar	0.105	18	19	0.8	0.13	33	25.4	1.15	0.239	48	50	4.0	1.567
4	9.8	0.85	0.065	19	19	1.2	0.182	34	27.2	0.85	0.191	49	50.5	1.4	0.59
5	10	2.0	0.136	20	20	5	0.638	35	27.5	1.2	0.271	50	55	1.2	0.55
6	12	2.0	0.170	21	21	0.95	0.162	36	28	1.0	0.23	51	55	2.0	0.899
7	12.5	1.5	0.146	22	22	0.9	0.162	37	28.6	1.0	0.237	52	58.3	1.5	0.723
8	13	0.9	0.093	23	22	-	1.083	38	31	0.75	0.195	53	59.89	1.24	0.622
9	13	1.4	0.332	24	22	1.15	0.205	39	35	3.0	0.817	54	75.5	2.8	1.733
10	14.2	0.8	0.092	25	22	3.0	0.485	40	35.8	1.2	0.356	55	100	2.0	1.68
11	15	5.4	0.452	26	24	1.0	0.197	41	36.5	1.2	0.363	56	120	3.0	3.00
12	16	1.0	0.129	27	24.8	0.8	0.488	42	38	2.0	0.62	57	200	3.0	5.032
13	16	1.2	0.151	28	25	1.0/1.3	0.204/0.253	43	38.1	1.2	0.375
14	16	1.4	0.174	29	25	1.2	0.245	44	40	2.0	0.652
15	16	1.5	0.186	30	25	4.0	0.720	45	45	2.0	0.738

FAQ

1.Q: Where is your factory located?

A: Our factory is located in Foshan City, China, it takes about an hour from Guangzhou Baiyun Airport to our factory, about an hour from Canton Fair.

2.Q: What is your minimum order quantity?

A: Our minimum order quantity is 500 KGS to 3,000 KGS.

3.Q: What is your standard time to develop new dies?

A: For normal size profiles, it takes about 7-10 to fabricate the dies and make the qualified samples.

4.Q: What is your lead time for production?

A: We can complete the orders of mill finish profiles about 10 days, the orders of anodized/powder coated in 15 to 20 days. We can arrange the shipment within 25 days.
