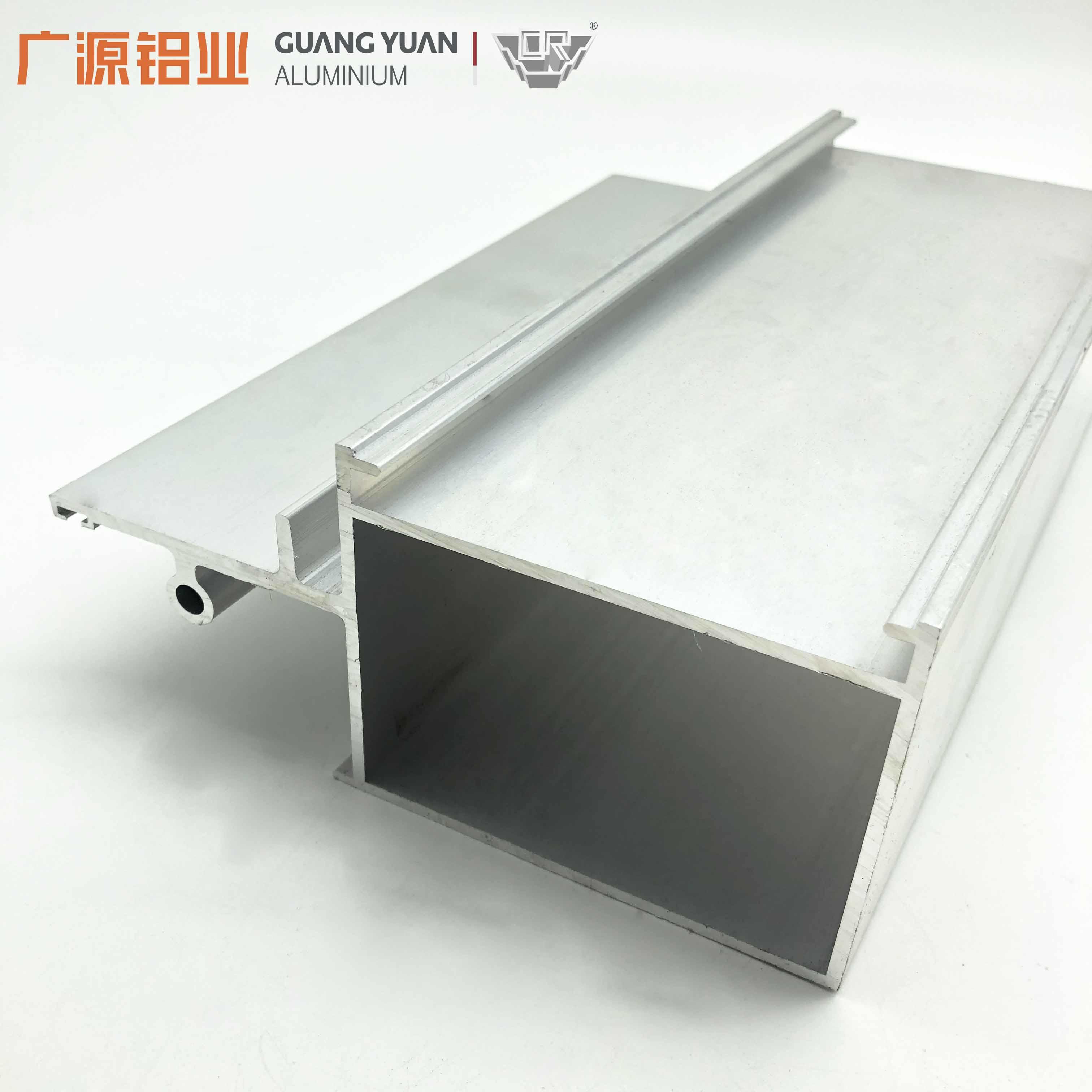

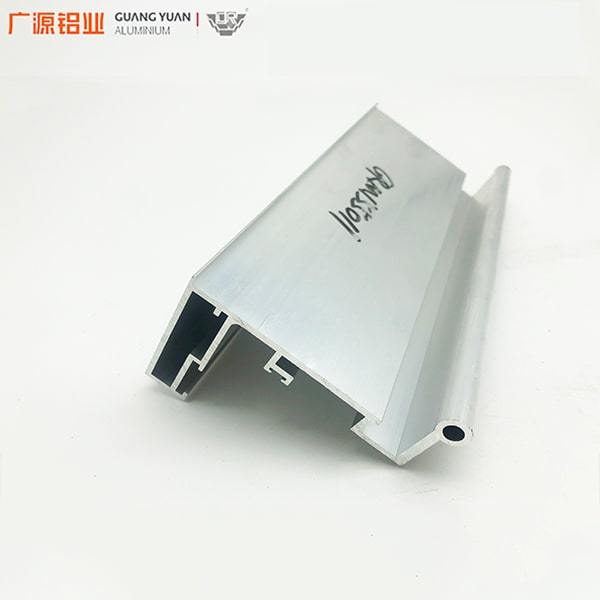

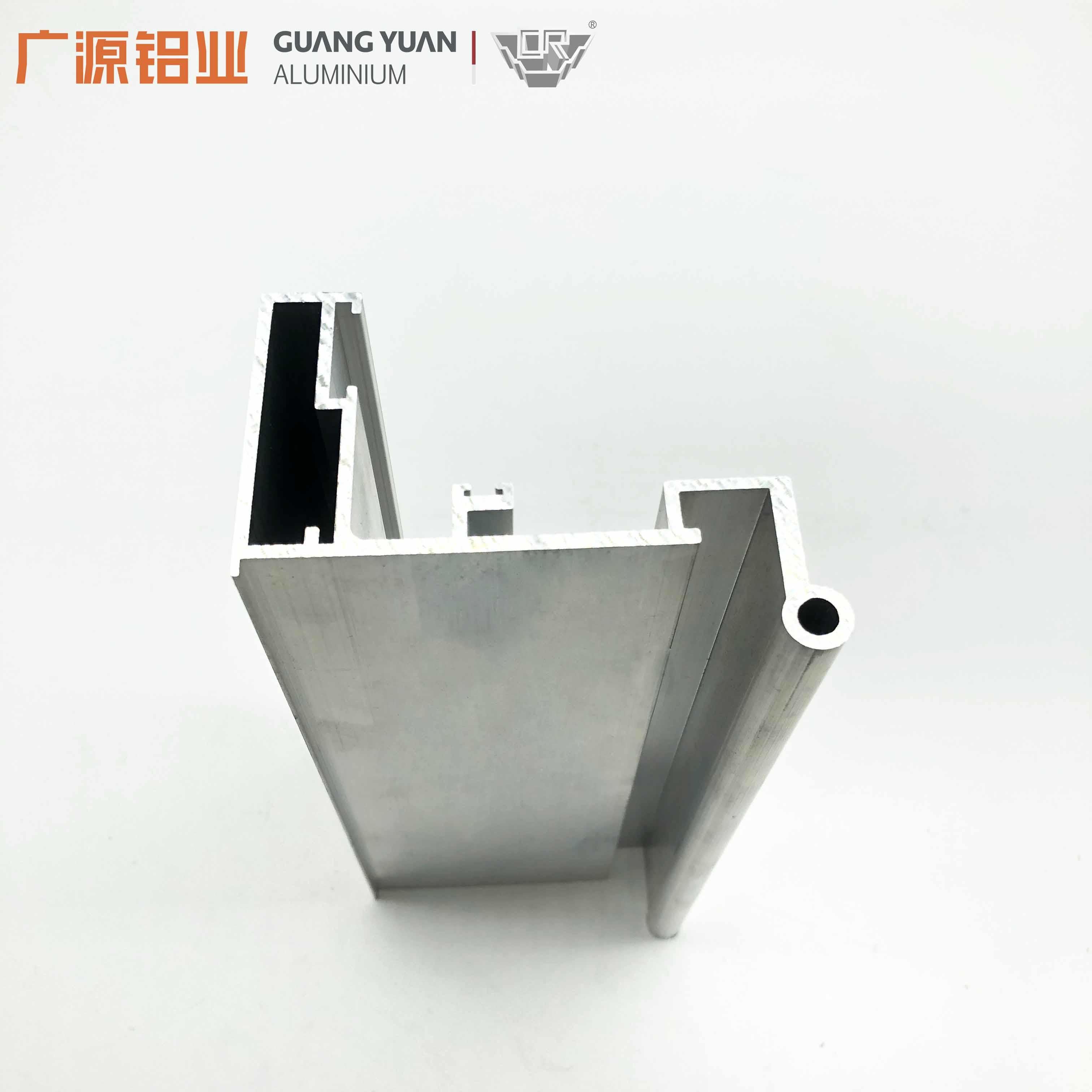

Curtain Wall Aluminium Profiles
- - Place of Origin: Foshan, China
- - Brand Name: GUANG YUAN
- - Model Number: GY001
- - Grade: 6000 Series
- - Alloy or Not: Is Alloy
- - Temper: T4-T6
- - Surface Treatment:
- - Mill Finish, Anodizing, Electrophoresis, Powder Coating, Polishing, Brush, Wood Grain, Fluorocarbon Coating, etc.
- - Deep Processing, Precise Cutting, Drilling, Bending, Punching, CNC and Aluminium Alloy Profile Fabrication
- - Quality Standard: China National Standard GB/T 5237-2008
- - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- - Application: Curtain Wall Aluminium Profiles
- - Use purpose: Construction Buildings, villas and residential houses
PRODUCT Description
Curtain wall aluminium profiles is a form of the outer protective wall of the building. Generally, the curtain wall is not load-bearing and looks like a hanging curtain. It is also called a hanging curtain, which is a lightweight wall hanging on the outside of the main structure. The curtain wall is characterized by good decorative effect, light weight, and fast installation speed. It is an ideal type of light-weight and assembled exterior wall, so it is widely used in modern large-scale and high-rise buildings. curtain wall aluminium profiles can be produced domestically, and most of them have national or industry standards. However, due to production technology and
Although the curtain wall aluminium profiles as the building envelope does not bear the load of the main structure, it is on the outer surface of the building. In addition to bearing its own weight, it still bears the influence of wind load, earthquake action and temperature action. Therefore, the curtain wall must be safe and reliable, and the materials used in the curtain wall must meet the quality indicators specified by the national or industry standards. curtain wall aluminium profiles do not have national or industry standards for the time being can be used by manufacturers in accordance with the standards of similar products in advanced foreign countries. Standards serve as the basis for product quality control. In short, the use of unqualified materials is strictly prohibited and must have a factory certificate.
Aluminum is the most used metal structure material in the construction industry after steel. The main projects that use aluminum in the construction industry are aluminum doors, windows and curtain walls.
Curtain wall aluminium profiles has good material properties, such as low density (2710kg/m3), suitable strength, good chemical stability, easy to keep clean, high conductivity, good radiation performance, suitable for anodizing, and easy to process.
Curtain wall aluminium profiles generally use 6063-T5 aluminum-magnesium-silicon alloy. The production process is to add the required chemical components to the pure aluminum ingot solution and continuously cast them into various specifications of aluminum alloy profiles.
Contact Person: Ms.Cindy Zhu
Contact Info: +86-13927280403 (WeChat/Whatsapp)
Email:cicizhu@guang-yuan.com
CLICK TO VIEW ALL PROFILES - SECTION 100&112
CLICK TO VIEW ALL PROFILES - SECTION 120
CLICK TO VIEW ALL PROFILES - SECTION 140&142&160&166
CLICK TO VIEW ALL PROFILES - SECTION 150&155&200
CLICK TO VIEW ALL PROFILES - SECTION 170&171&180
ITEM | Curtain Wall Aluminium Profiles | ||||||
Material | 6000 series aluminium alloy | ||||||
Temper | T4, T5, T6 | ||||||
Profile Thickness | 0.5mm ~ 20mm | ||||||
Surface Treatment | Mill finish, anodizing, electrophoresis, powder coating, wooden color, fluorocarbon coating, polished, brushed, etc. | ||||||
Coating Film Thickness | 8~25um for anodizing film, 40~120um for powder coating film | ||||||
MOQ | 500kgs for each item | ||||||
Packing Details | Inside: Packed with protection film to protect the surface of each profile | ||||||
Outside: Wrapped with hot shrink film and waterproof craft paper | |||||||
Settlement Term | Calculate by actual weight or theoretical weight in the drawing | ||||||
Delivery Time | Die Tooling & Sample Testing: 7-15 days | ||||||
Mass Production Completed: 15~25 days after samples are confirmed by the buyer | |||||||
FOB Port | Guangzhou / Shenzhen / Foshan | ||||||
Payment Term | T/T 30% for deposit and 70% for balance before shipping | ||||||
Production Capacity | 12,500 tons monthly and 150,000 tons annually | ||||||
Certificate and Standard | CQM, ISO, SGS, BV | ||||||
Guarantee | Surface finish can be stable for 10~20 years for indoor usages |
PACKING METHODS |
|||||||
1. Bundles Packing: | |||||||
Inside: packed with plastic protection film to protect the surface of each piece | |||||||
Outside: wrapped to be bundles by EPE foam and waterproof craft paper | |||||||
2. Carton Packing | |||||||
Inside: Each piece packed in one plastic polybag | |||||||
Outside: Numbers of pieces packed in one carton | |||||||
3. Wooden Pallet Packing | |||||||
Inside: Bundles or carton packing | |||||||
Outside: Numbers of bundles or cartons placed on one wooden pallet | |||||||
4. Customized packing requirement available | |||||||
SHIPMENT |
|||||||
Standard Loading Quantity | 1*20GP | 1*40HQ | |||||
Max. length: 5.85 meters | Max. length: 12 meters | ||||||
10-12 Tons | 22-26 Tons | ||||||
Standard Loading Port | HUANGPU / NANSHA / YANTIAN / SHEKOU | ||||||
Shipping Methods | Ocean shipment, air shipment, land transportation and multi-transportation, etc. |
