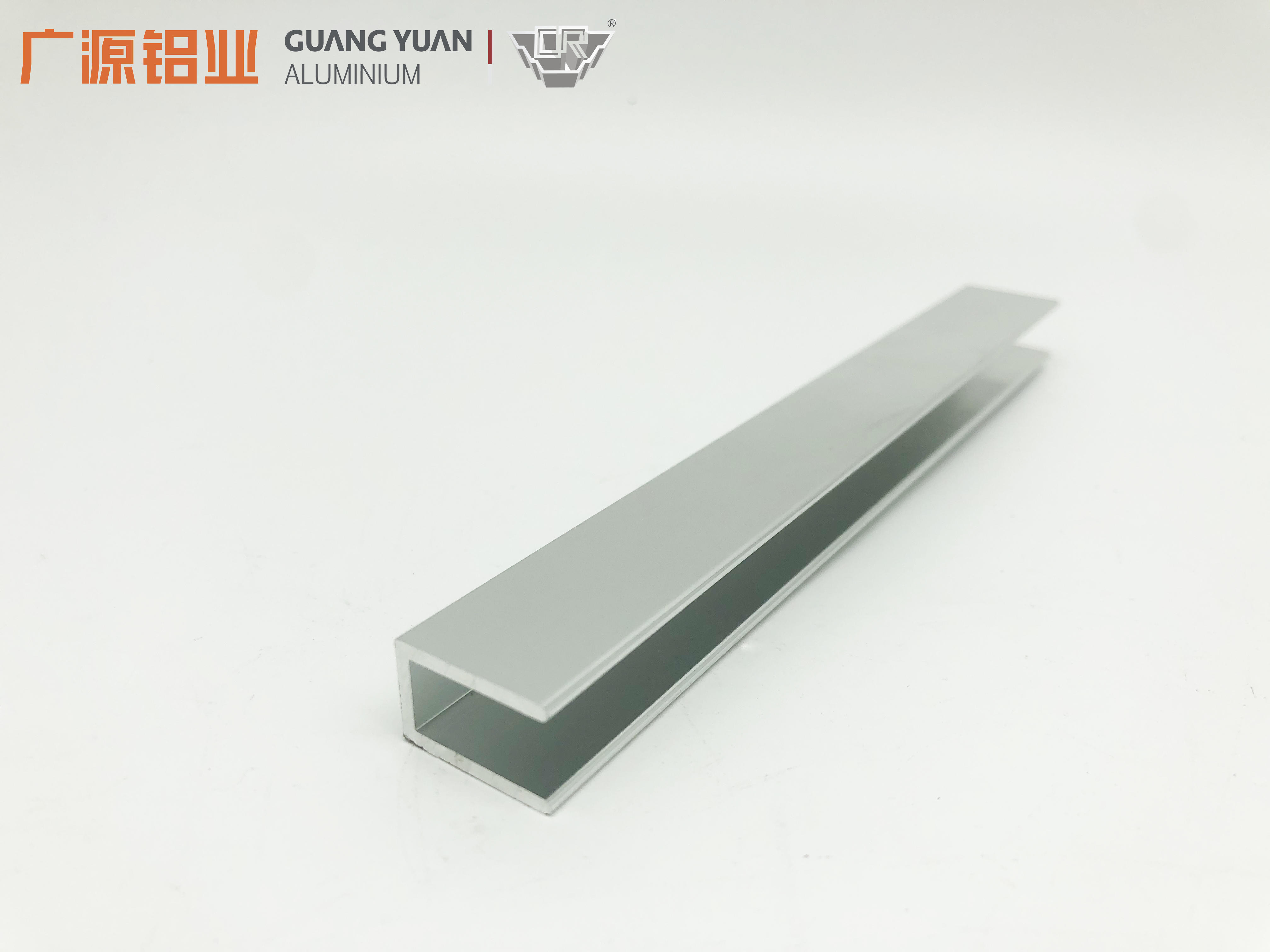

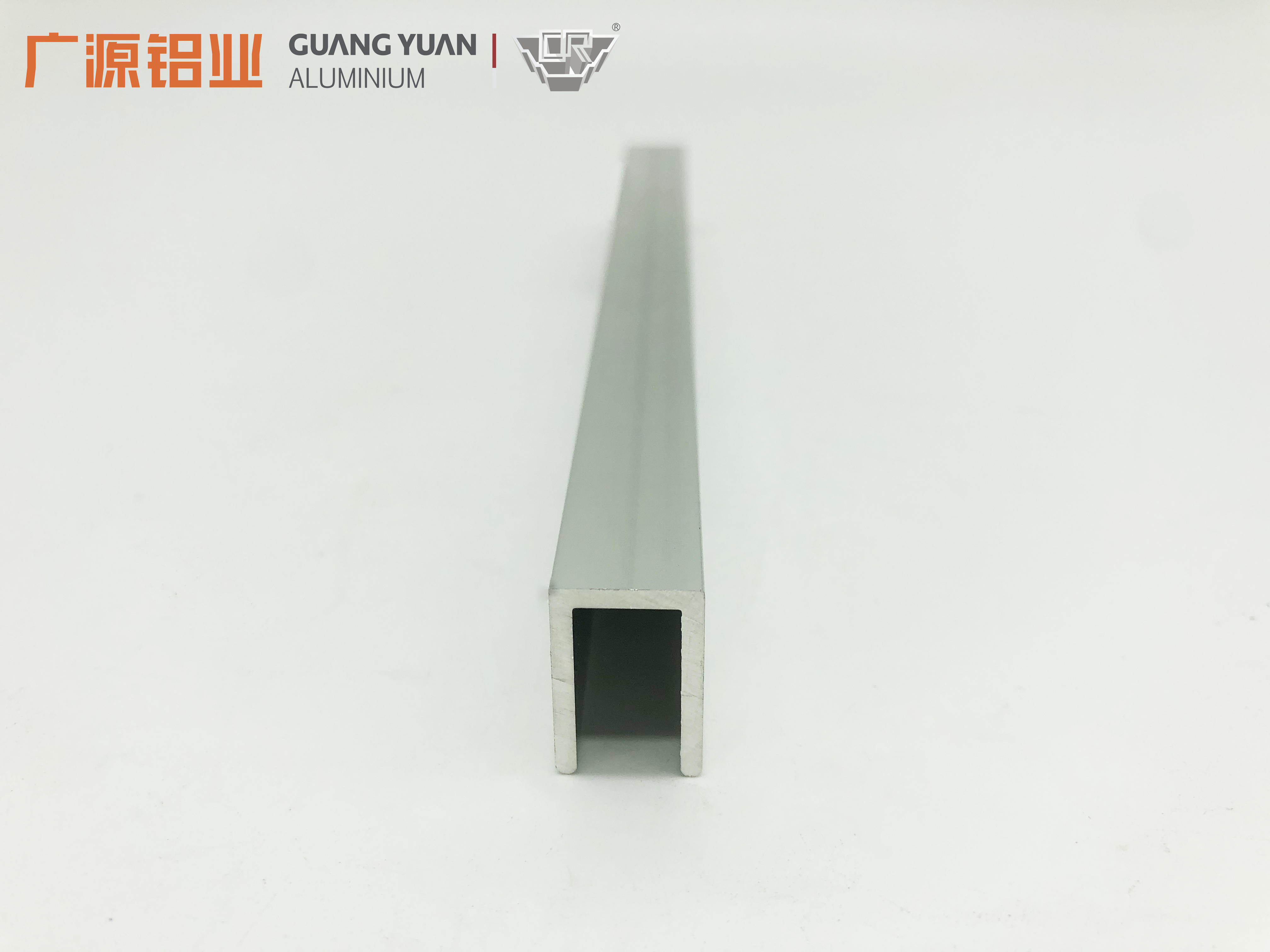

U Channel Aluminium Extrusion

- Place of Origin: Foshan, China
- Brand Name: GUANG YUAN
- Model Number: GY001
- Grade: 6000 Series
- Alloy or Not: Is Alloy
- Temper: T4-T6
- Surface Treatment:
- Mill Finish, Anodizing, Electrophoresis, Powder Coating, Polishing, Brush, Wood Grain, Fluorocarbon Coating, etc.
- Deep Processing, Precise Cutting, Drilling, Bending, Punching, CNC and Aluminium Alloy Profile Fabrication
- Quality Standard: China National Standard GB/T 5237-2008
- Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- Application: u channel aluminium extrusion
- Use purpose: Construction Buildings, villas and residential houses

PRODUCT Description

Guangyuan Aluminum Co., Sells the highest quality u channel aluminium extrusion. Those profiles are a good substation for steel and others when you need to figure out the weight problem with steel profiles. Also, u channel aluminium extrusion are highly resistant to corrosion, which adds to its overall value.

u channel aluminium extrusion have various styles and shapes, which can be applied in different industries are. Some of which include:

- Scaffolding

- Machine Parts

- Furniture Applications

- Transportation

- Marine

- Solar & Renewable Energy

- Structural components

- Frames

- Others

Guangyuan Aluminum Co., Ltd are well equipped with a u channel aluminium extrusion’ dies, which are with a range of 1.0 mm thickness to 8.0 mm thickness for the customer to select. Please see the following detail drawings to find out your preference. Even if your desirable profiles are not on the list in our catalog, as an experienced aluminium u channel manufacturers, we are flexible to make your custom aluminum extrusions base on your dimensions.

Buy aluminum bars and tubes here and you won't be disappointed because Guangyuan Aluminum Co., ltd is one of the leading aluminium u channel manufacturers in China.

Choose Guangyuan Aluminum Co., ltd and let Guangyuan Aluminum Co., ltd become one of your reliable and even your first choice aluminium u channel manufacturers.

Contact Person: Mr. Adam Lin

Contact Info: +86-13630007855 (WeChat/Whatsapp)

Email：gyaluminium@hotmail.com

u channel aluminium extrusion										u channel aluminium extrusion
NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)	NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)	NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)	NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)
1	9.5	9.5	0.5	0.037	21	21.8	40	2.0	0.53	41	40	40	1.0	0.321	61	80	19	1.0	0.313
2	9.5	8	1.6	0.095	22	22.1	16.9	0.8	0.117	42	40	40	4.0	1.219	62	80	40	3.0	1.252
3	10	10	1.2	0.09	23	23	10	1.2	0.133	43	43	18	0.8	0.168	63	80	50	5.0	2.304
4	12	12	0.8	0.075	24	25	12	1.6	0.198	44	46	13	1.0	0.189	64	82	25.4	1.2	0.424
5	12	12	1.0	0.092	25	25	30	3.0	0.647	45	50	4	1.2	0.18	65	83	18	1.0	0.315
6	12	14	1.5	0.151	26	25	50	3.0	0.968	46	50	12	1.2	0.234	66	85	16	1.0	0.313
7	12	14	2.0	0.196	27	26	20	3.0	0.488	47	50	26.5	1.5	0.405	67	86	18	1.0	0.389
8	12.7	12.7	0.7	0.069	28	26	26	2.0	0.401	48	50	30	3.0	0.846	68	88	16.8	1.0	0.325
9	12.7	12.7	0.9	0.089	29	27	13	1.0	0.14	49	50	50	1.4	0.560	69	95	15	1.0	0.333
10	12.7	20	2.0	0.264	30	28	19	1.1	0.19	50	55	25	0.8	0.226	70	100	20	1.0	0.372
11	13	15	1.4	0.154	31	30	10	2.0	0.249	51	60	30	2.0	0.631	71	104	22	2.0	1.041
12	13.2	19	2.5	0.313	32	30	15	1.2	0.187	52	70	35	5.0	1.761	72	150	23	2.0	1.041
13	14.2	19	2.0	0.261	33	31	25	2.0	0.416	53	72	15	0.9	0.246	73	210	20	2.0	1.338
14	14.5	20	1.7	0.234	34	31	40	2.0	0.578	54	75	20	1.0	0.306
15	16	16	1.7	0.206	35	31.75	12.75	0.7	0.107	55	76	12.7	1.1	0.300
16	16.4	12	1.0	0.104	36	34	32	4.4	1.070	56	76	19	1.0/1.2	0.284/0.365
17	17.2	19	2.0	0.278	37	35	15	2.0	0.309	57	77	51	1.1	0.533
18	18	18	1.0	0.141	38	38	12.5	0.8	0.134	58	80	12	1.0	0.275
19	19	9.5	2.0	0.185	39	40	20	1.6	0.335	59	80	13	1.0	0.283
20	19	25	2.0	0.3549	40	40	20	2.0	0.415	60	80	15	0.9	0.264

FAQ

1.Q: Where is your factory located?

A: Our factory is located in Foshan City, China, it takes about an hour from Guangzhou Baiyun Airport to our factory, about an hour from Canton Fair.

2.Q: What is your minimum order quantity?

A: Our minimum order quantity is 500 KGS to 3,000 KGS.

3.Q: What is your standard time to develop new dies?

A: For normal size profiles, it takes about 7-10 to fabricate the dies and make the qualified samples.

4.Q: What is your lead time for production?

A: We can complete the orders of mill finish profiles about 10 days, the orders of anodized/powder coated in 15 to 20 days. We can arrange the shipment within 25 days.
