Aluminum Sunroom

- Place of Origin: Foshan, China
- Brand Name: GUANG YUAN, DE YUAN NUO
- Frame Material: Aluminium alloy
- Mesh Material: Stainless steel and fiberglass
- Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
- Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
- Quality Standard: AS2047
- Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- Glass Standard: AS2208
- Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass

PRODUCT Description

Established in 1993, GUANG YUAN ALUMNIUM has 28 years’ experience in manufacturing aluminium profiles for windows and doors, curtain walls, heat sinks, industrial aluminium profiles, kitchen cabinet, wardrobe sliding doors, and glass railings, aluminium door and window system, and aluminium furniture, etc.

With more than 20 extrusion machines, anodizing and electrophoresis production lines, powder coating production lines, wooden grain heat transfer production lines, and PVDF coating production lines, our production capacity have reached 150,000 tons in a year.

We have started our export business since 1998 and our products have been exported to South East Asia, Middle East, East Europe, Africa and South America, such as Vietnam, Thailand, Malaysia, UAE, Saudi Arabia, Iraq, Israel, Russia, Poland, Ukraine, Ghana, Tanzania, South Africa, Mali, Benin, Chile, Bolivia, Uruguay, Peru and Mexico, etc.

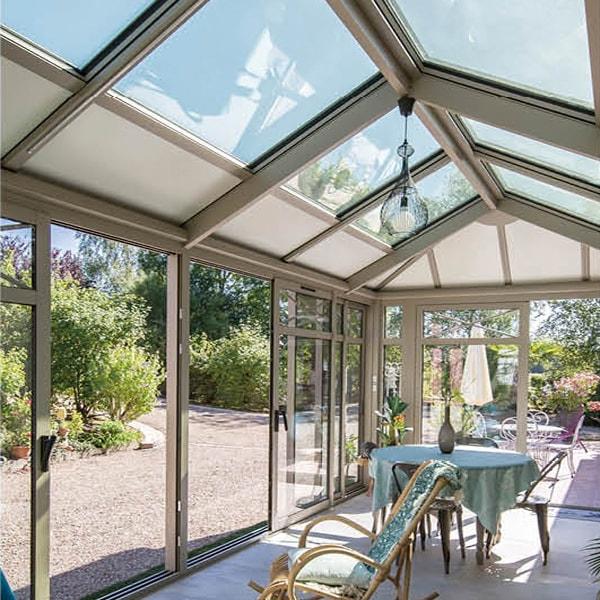

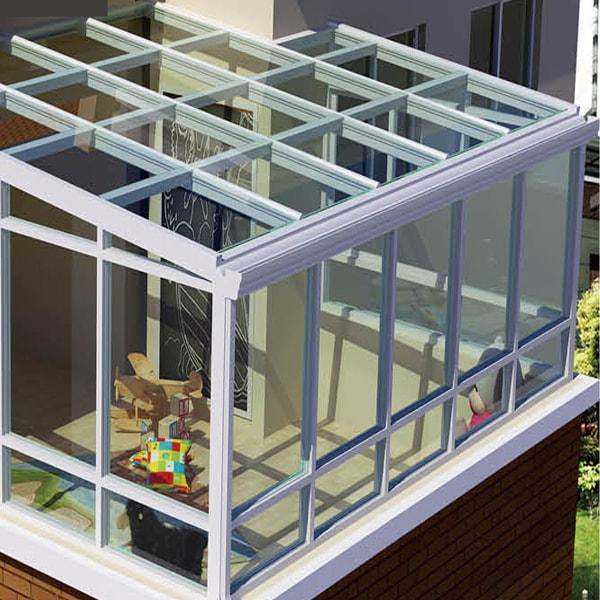

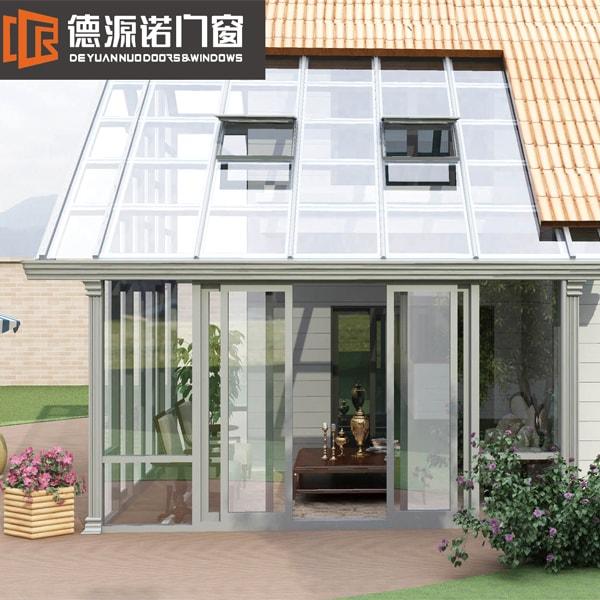

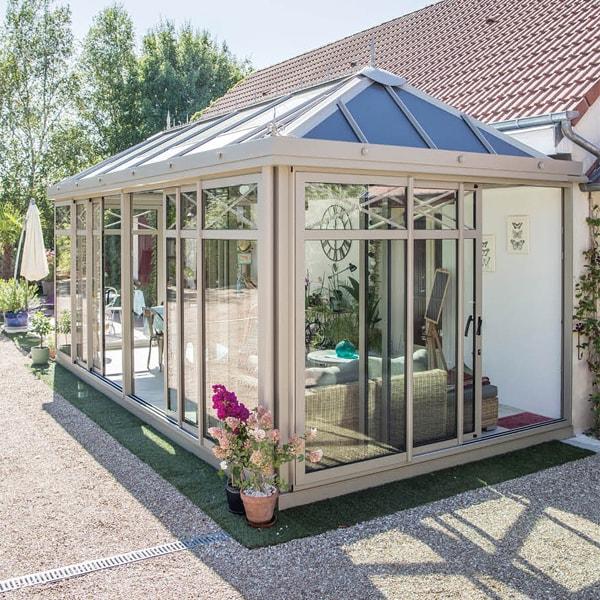

The aluminum sunroom is also called a glass room. The Sun Room is a non-traditional building built with glass and aluminum alloy frames to achieve the purpose of enjoying the sun and being close to nature. Sun room is a building admired by those who are pursuing nature and fashion at home and abroad. The Sunshine Room is a victory industry that is widely studied in the North China and Shanghai areas. It needs to be designed and constructed according to the needs of the place and personal preferences. The interior layout can be decorated according to personal preferences. The balcony or terrace conservatory is in the entire living room, so visual connectivity is very important. It needs to be considered to be consistent with the overall style of the building, while keeping the overall tone as consistent as possible.

aluminum sunroom can be fabricated by aluminum profiles and thermal break aluminum profiles with double glazing. The dimensions can be customized according to the customer’s requirements. The drainage system and shading system can be installed alternatively.

Contact Person: Mr. Adam Lin

Contact Info: +86-13630007855 (WeChat/Whatsapp)

Email：gyaluminium@hotmail.com

Product Name	aluminum sunroom
Manufacturing Standard	AS2047
Quality Certificate	ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
Aluminium Profiles	6063-T5 high quality thermal/non-thermal break aluminium profiles
Profiles Thickness	1.4mm for windows, 2.0mm for doors
Surface Treatment	Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color
Color	Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
Glazing Type	tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing
Glazing Thickness	Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm
	Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm
Mesh	Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen
	Retractable screen, fixed screen and sliding screen
Sealing	Chinese famous brand silicone and EPDM strips
Hardware	KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH
Architrave	Depending on the customer’s requirements
Guarantee	10 years to 20 years
Application	Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses
MOQ	1 set
Packing Details	EPE foam packing and wooden crate packing
Payment Term	1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.
	2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.
	3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.
STRUCTURAL PARAMETERS
Profile Thickness	Frame Depth					Sash Width
2.0mm	138mm					90mm
PERFORMANCE PARAMETERS
Heat Insulation(m2·K)	Sound Insulation(DB)		Water Tightness(PA)	Air Tightness		Wind Load(KPa)
4W	45DB		700PA	4.5≤92>3.0		3.5≤P3>4.0
Level 4	Level 4		Level 6	Level 8		Level 8
SHIPMENT
Standard Loading Quantity		1*20GP			1*40HQ
		Max. length: 5.85 meters			Max. length: 12 meters
		200 square meters			400 square meters
Standard Loading Port		HUANGPU / NANSHA / YANTIAN / SHEKOU
Shipping Methods		Ocean shipment, air shipment, land transportation and multi-transportation, etc.
