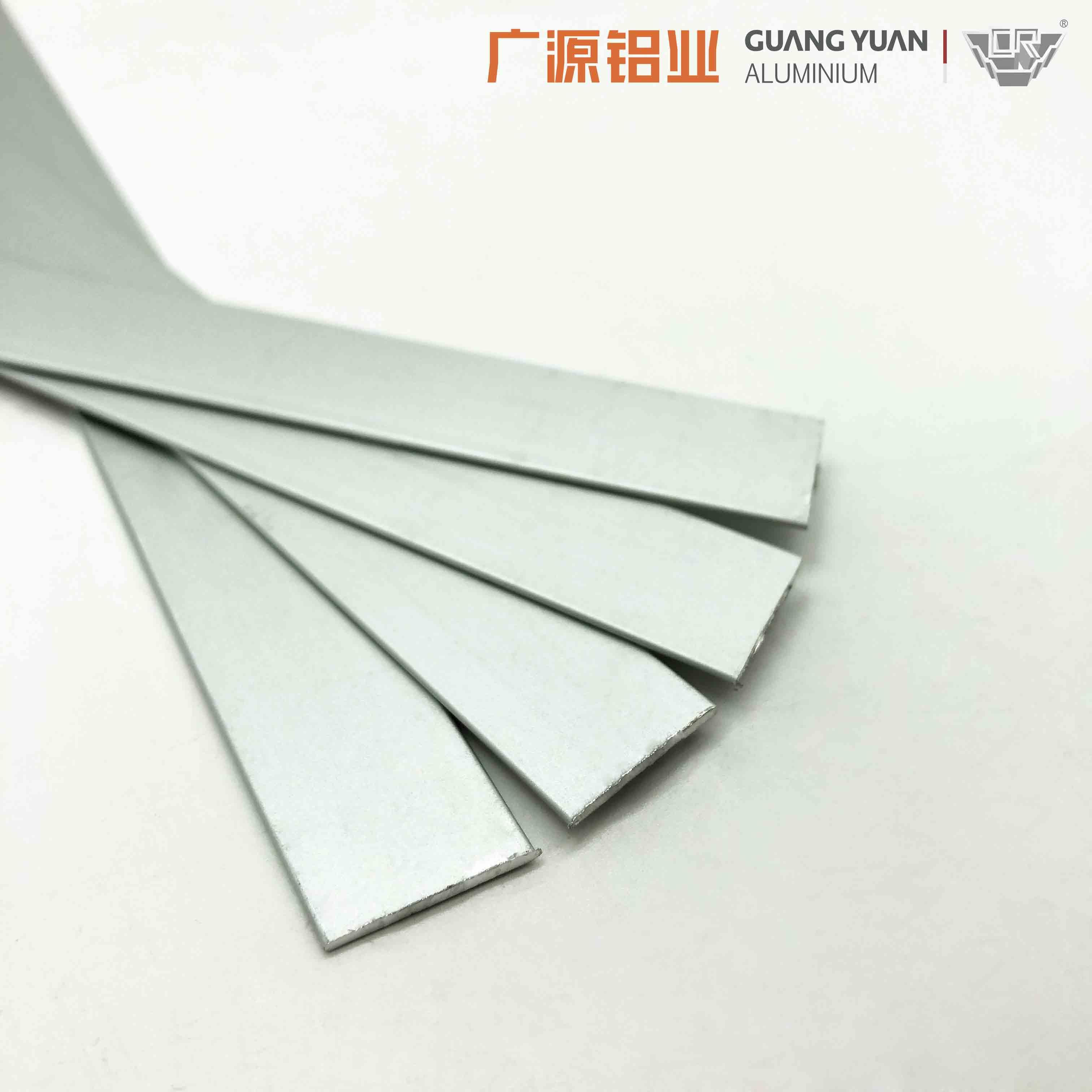

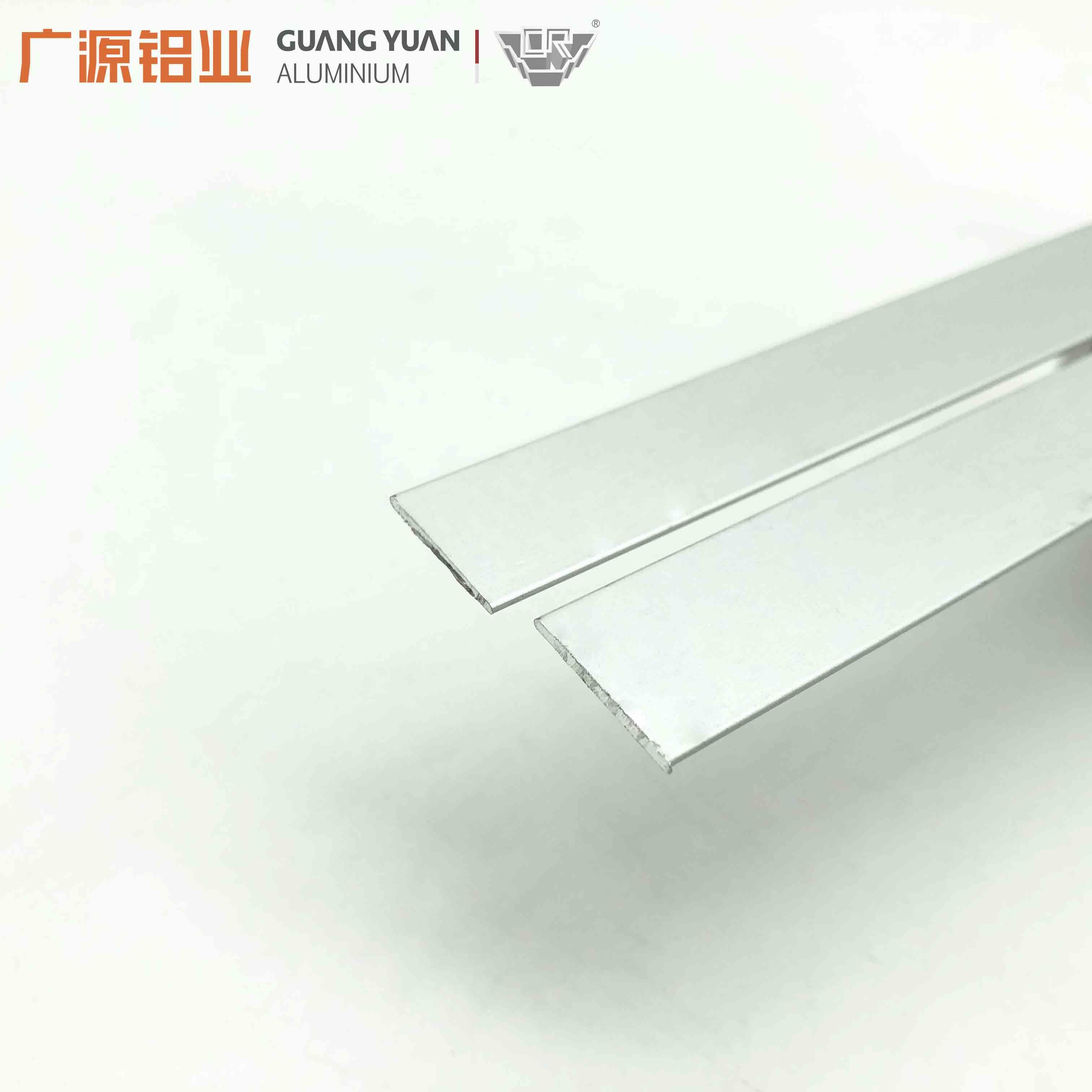

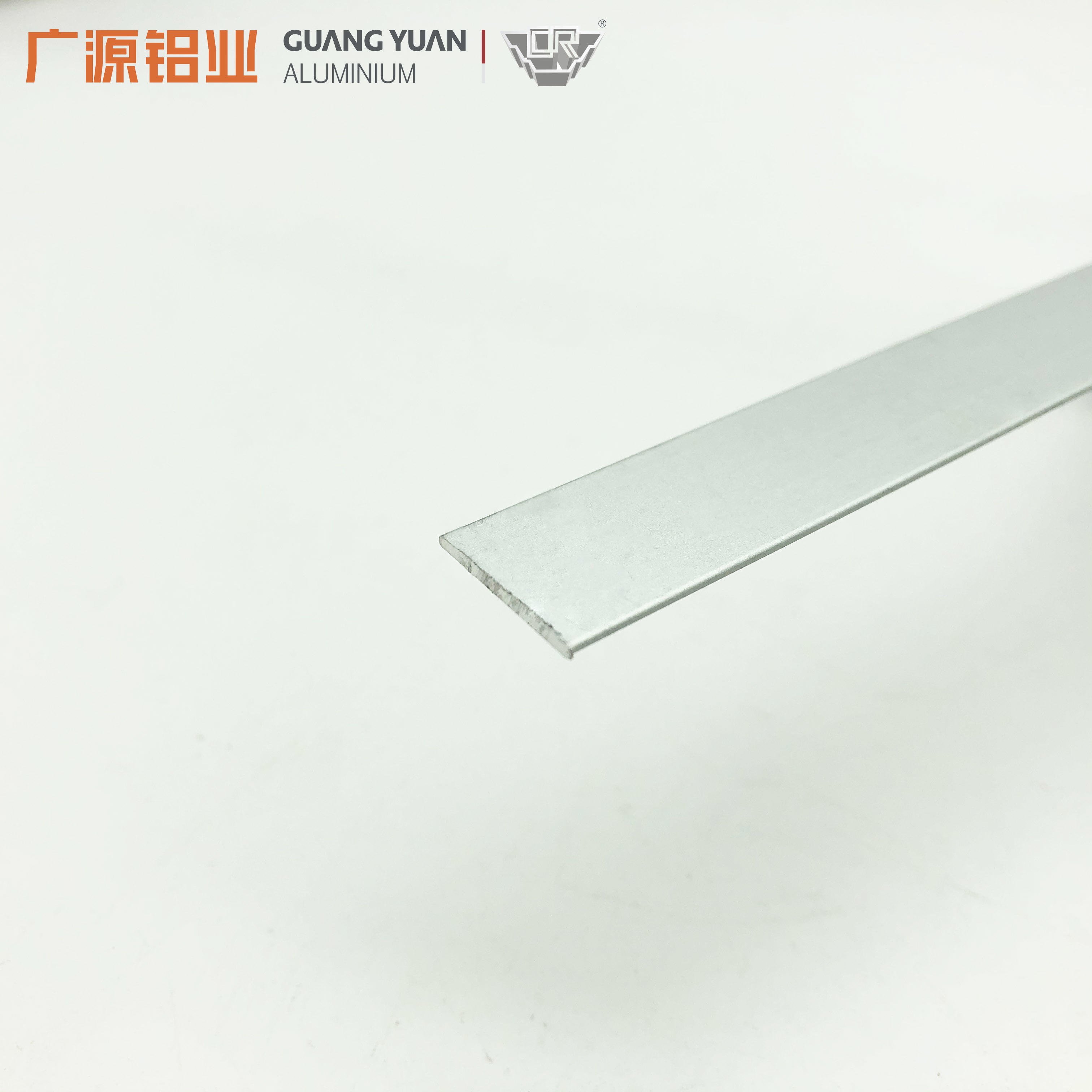

Aluminium Flat Bar Extrusions
- - Place of Origin: Foshan, China
- - Brand Name: GUANG YUAN
- - Model Number: GY001
- - Grade: 6000 Series
- - Alloy or Not: Is Alloy
- - Temper: T4-T6
- - Surface Treatment:
- - Mill Finish, Anodizing, Electrophoresis, Powder Coating, Polishing, Brush, Wood Grain, Fluorocarbon Coating, etc.
- - Deep Processing, Precise Cutting, Drilling, Bending, Punching, CNC and Aluminium Alloy Profile Fabrication
- - Quality Standard: China National Standard GB/T 5237-2008
- - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- - Application: Aluminium Flat Bar Extrusions
- - Use purpose: Construction Buildings, villas and residential houses
PRODUCT Description
aluminium flat bar extrusions: As the name implies, flat aluminum. To be precise, it should be called a horizontal gear. The name of the aluminium flat bar extrusions comes from the exhibition equipment industry. Because the material is aluminum alloy and a flat cuboid, it is collectively called aluminium flat bar extrusions, which is used in conjunction with other column series profiles. It is an indispensable profile for building exhibition booths and advertising equipment.
1. According to the standards of the exhibition equipment industry, the thickness of the inner wall of all aluminium flat bar extrusions must be greater than 1.6mm. Based on this standard, the inner wall thickness of all aluminium flat bar extrusions circulating in the market is almost 2mm, plus the surface spraying of the profile, the total thickness is suitable for 2.1-2.2mm. 2. The surface of the aluminium flat bar extrusions must be oxidized, or Anti-corrosion and anti-oxidation treatment for spraying. 3. The chemical composition and mechanical properties of the profile display must meet the requirements of 6063-T5 in GB/T5237-2004. 4. The degree of bending and torsion should be controlled within the range of 1.0mm/m and 0.5˚/m respectively. 5. The shape and size of the section should meet the requirements of the drawings; the length tolerance of the profile is ±0.5mm.
Guangyuan Aluminum Co., Ltd. sells the best quality aluminium flat bar extrusions. When you need to find out the weight of aluminium flat bar extrusions, these profiles are ideal substations for steel and other products. Moreover, aluminium flat bar extrusions have high corrosion resistance, thereby increasing their overall value. aluminium flat bar extrusions has a variety of styles and shapes, which can be used in different industries. Some of these include:
- Scaffolding
- Machine Parts
- Furniture Applications
- Transportation
- Marine
- Solar & Renewable Energy
- Structural components
- Frames
- Others
Guangyuan Aluminum Co., Ltd are well equipped with a aluminium flat bar extrusions’ dies, which are with a range of 1.0 mm thickness to 10.0 mm thickness for the customer to select. Please see the following detail drawings to find out your preference. Even if your desirable profiles are not on the list in our catalog, as an experienced aluminium extrusion company, we are flexible to make your custom aluminum extrusions base on your dimensions.
The advantages of aluminium flat bar extrusions.
Light and energy saving
Easy to fabricate and clean
Long operating Life and durable
Contact Person: Ms.Cindy Zhu
Contact Info: +86-13927280403 (WeChat/Whatsapp)
Email:cicizhu@guang-yuan.com
aluminium flat bar extrusions Standards |
|
aluminium flat bar extrusions Standards |
||||||||||||||||
NO |
A(mm) |
T(mm) |
Weight(kg/m) |
|
NO |
A(mm) |
T(mm) |
Weight(kg/m) |
NO |
A(mm) |
T(mm) |
Weight(kg/m) |
|
NO |
A(mm) |
T(mm) |
Weight(kg/m) |
|
1 |
4.8 |
4.8 |
0.063 |
13 |
20 |
2 |
0.109 |
25 |
32 |
3 |
0.261 |
37 |
80 |
9 |
2.02 |
|||
2 |
9.75 |
7.75 |
0.259 |
14 |
20 |
2.8 |
0.148 |
26 |
38 |
2 |
0.206 |
38 |
85 |
1.8 |
0.417 |
|||
3 |
11.7 |
5.7 |
0.182 |
15 |
20 |
4 |
0.217 |
27 |
40 |
6 |
0.65 |
39 |
90 |
5 |
1.220 |
|||
4 |
12 |
2 |
0.066 |
16 |
20 |
5 |
0.291 |
28 |
45 |
1 |
0.122 |
40 |
100 |
2.0 |
0.544 |
|||
5 |
12.7 |
3.18 |
0.11 |
17 |
24.5 |
2.4 |
0.160 |
29 |
50 |
2 |
0.272 |
41 |
101.6 |
3.05 |
0.839 |
|||
6 |
13 |
3 |
0.106 |
18 |
24.5 |
2.8 |
0.187 |
30 |
50 |
3 |
0.51 |
42 |
117.5 |
2 |
0.634 |
|||
7 |
13 |
12.5 |
0.441 |
19 |
25 |
1.5 |
0.12 |
31 |
50 |
10 |
1.355 |
43 |
135 |
3.0 |
1.102 |
|||
8 |
16 |
3 |
0.130 |
20 |
25.4 |
2.35 |
0.63 |
32 |
50 |
15 |
2.033 |
44 |
165.16 |
5.15 |
2.297 |
|||
9 |
16.5 |
7.5 |
0.331 |
21 |
25.4 |
3.18 |
0.22 |
33 |
50.8 |
2.85 |
0.4 |
45 |
210 |
3 |
1.713 |
|||
10 |
19 |
4.8 |
0.248 |
22 |
30 |
2 |
0.163 |
34 |
60 |
5 |
0.813 |
46 |
279.5 |
3.5 |
2.651 |
|||
11 |
19.05 |
3.18 |
0.166 |
23 |
30 |
3 |
0.245 |
35 |
76 |
1.2 |
0.248 |
|
|
|
|
|||
12 |
19.8 |
4 |
0.216 |
24 |
30 |
6 |
0.488 |
36 |
80 |
3 |
0.65 |
|
|
|
|
FAQ
1. Q: Where is your factory located?
A: Our factory is located in Foshan City, China, it takes about an hour from Guangzhou Baiyun Airport to our factory, about an hour from Canton Fair.
2. Q: What is your minimum order quantity?
A: Our minimum order quantity is 500 KGS to 3,000 KGS.
3. Q: What is your standard time to develop new dies?
A: For normal size profiles, it takes about 7-10 to fabricate the dies and make the qualified samples.
4. Q: What is your lead time for production?
A: We can complete the orders of mill finish profiles about 10 days, the orders of anodized/powder coated in 15 to 20 days. We can arrange the shipment within 25 days.
Q: Did you export aluminium flat bar extrusions to overseas countries?
A: We have exported our profiles to South East Asia, Middle East, East Europe, South America and Africa, etc.
