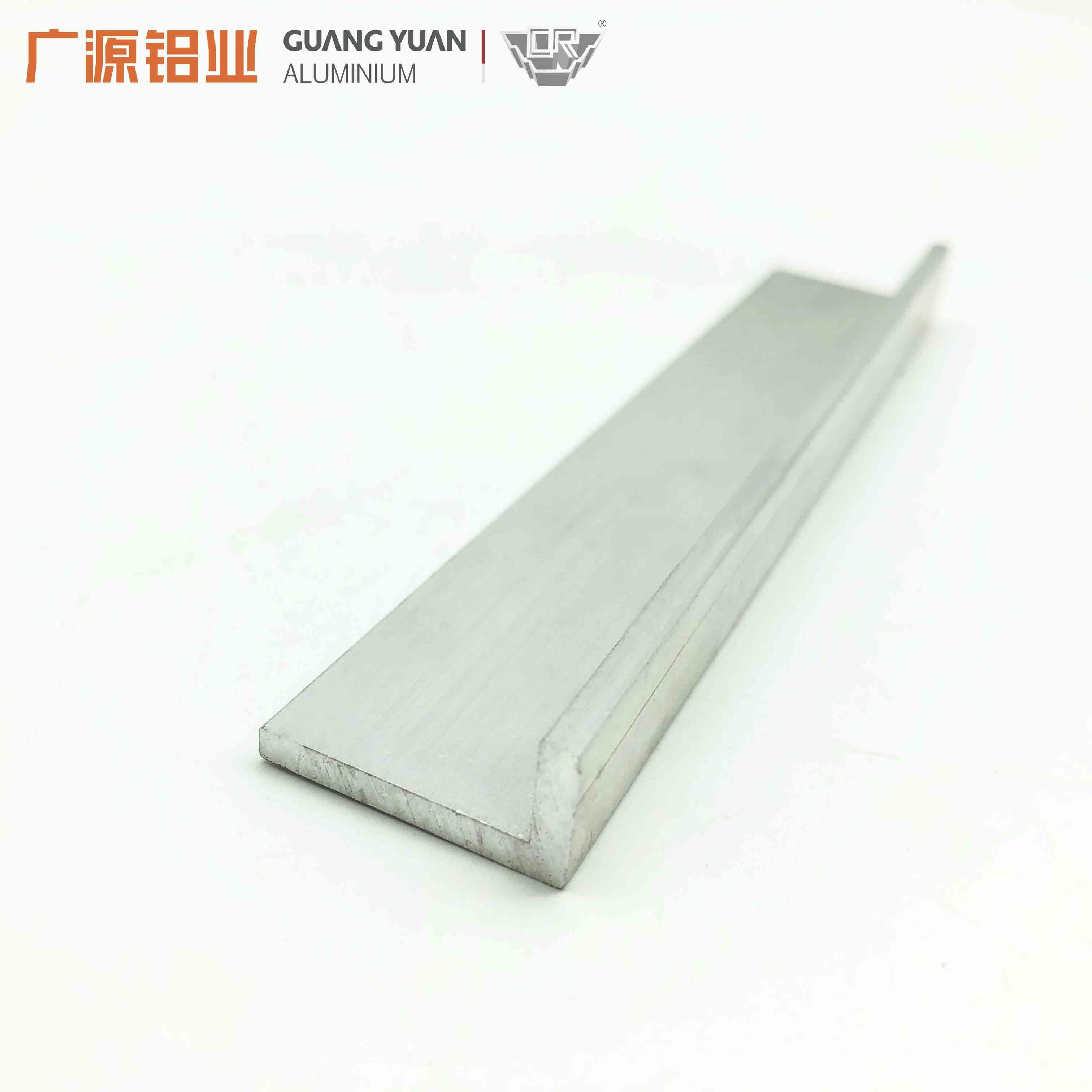

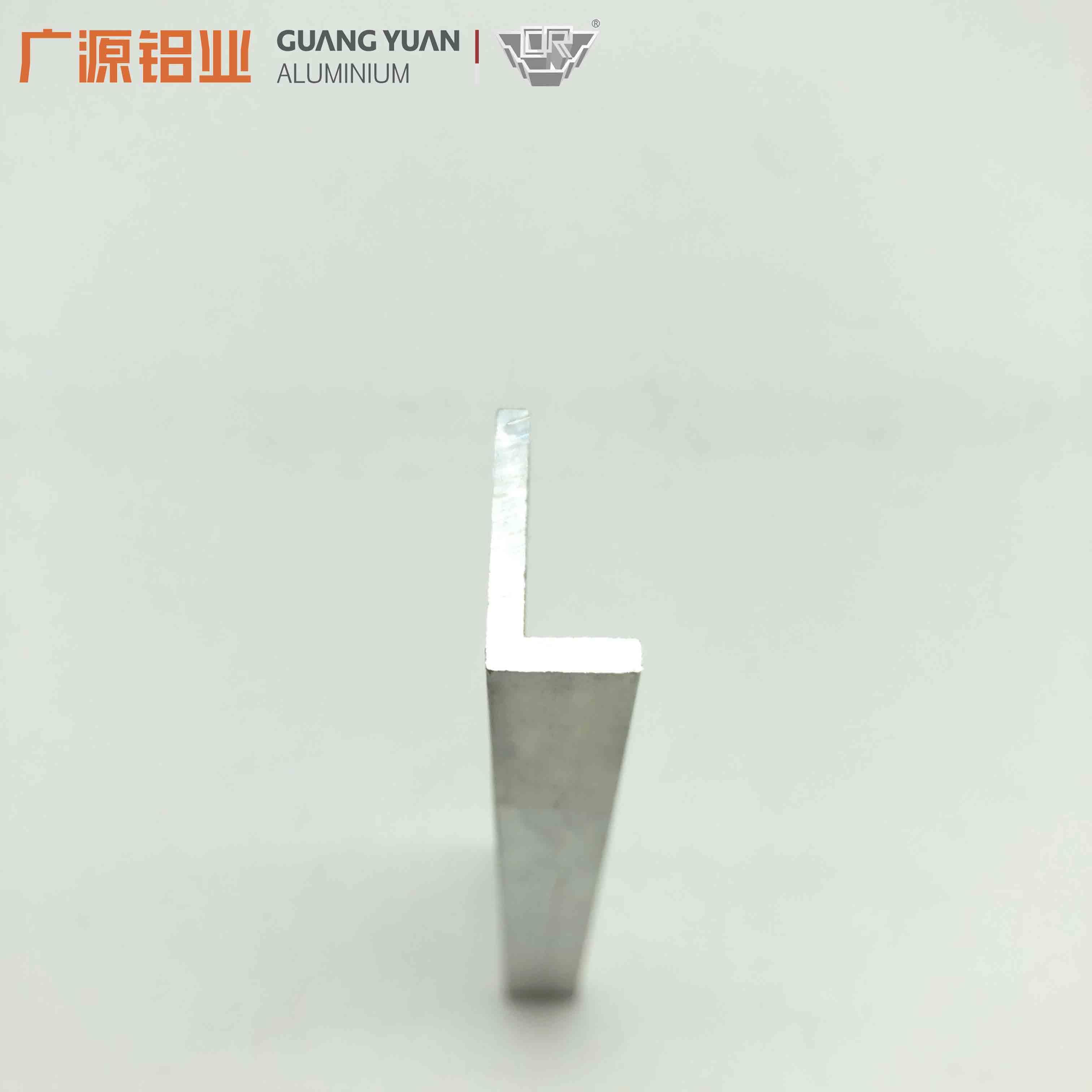

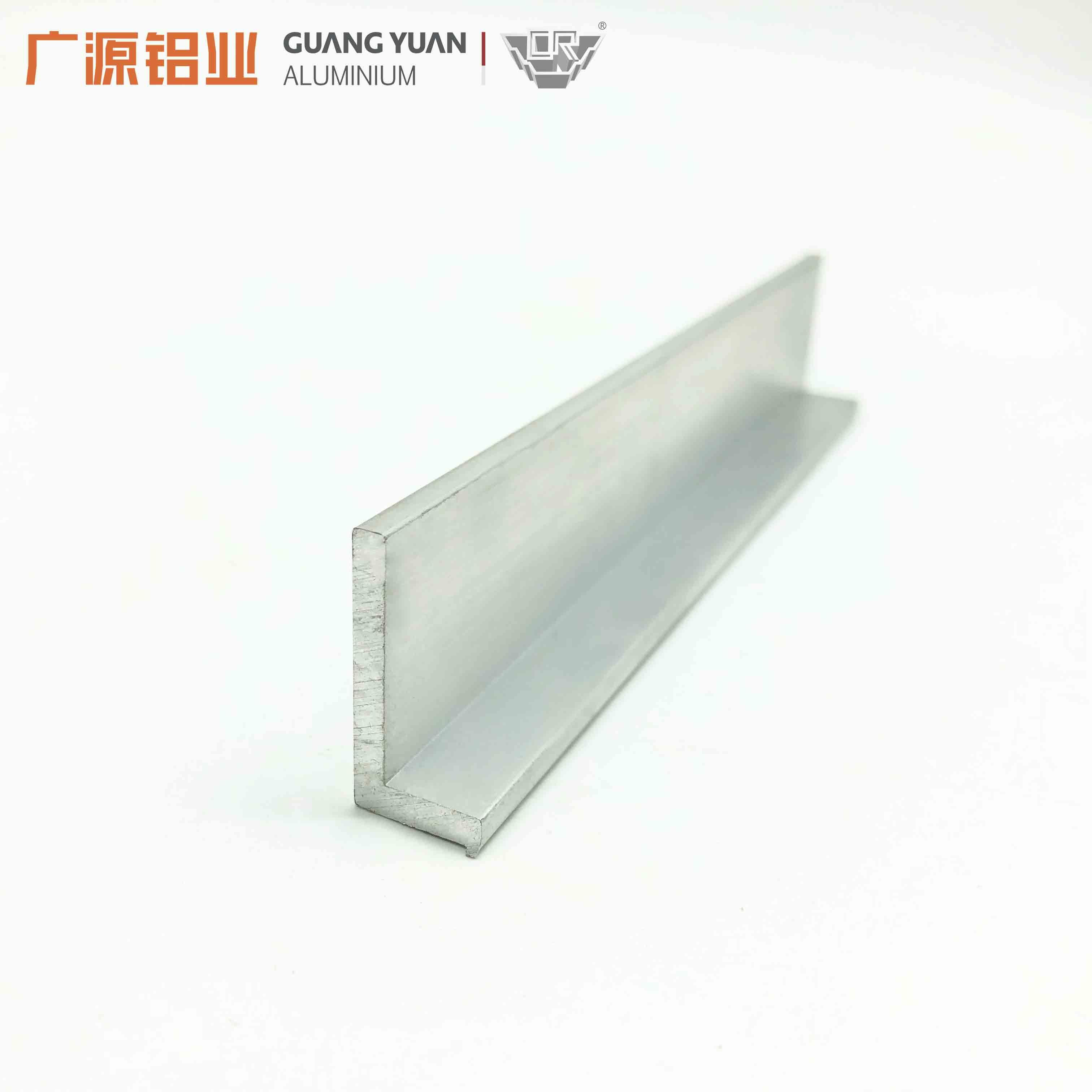

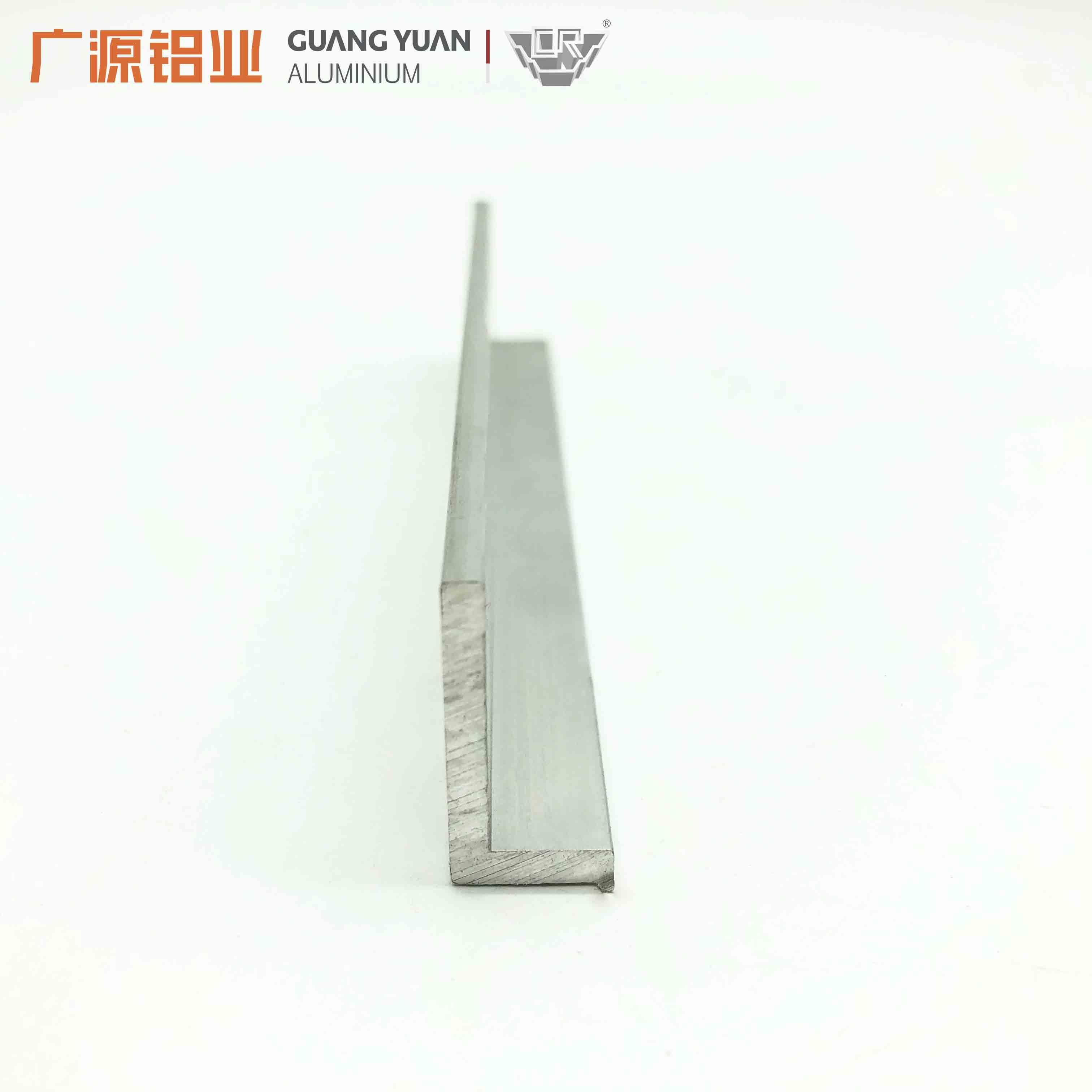

Extruded L Shape Aluminium Profile

- Place of Origin: Foshan, China
- Brand Name: GUANG YUAN
- Model Number: GY001
- Grade: 6000 Series
- Alloy or Not: Is Alloy
- Temper: T4-T6
- Surface Treatment:
- Mill Finish, Anodizing, Electrophoresis, Powder Coating, Polishing, Brush, Wood Grain, Fluorocarbon Coating, etc.
- Deep Processing, Precise Cutting, Drilling, Bending, Punching, CNC and Aluminium Alloy Profile Fabrication
- Quality Standard: China National Standard GB/T 5237-2008
- Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- Application: Extruded L shape aluminium profile
- Use purpose: Construction Buildings, villas and residential houses

PRODUCT Description

Guangyuan Aluminum Co., Sells the highest quality Extruded L shape aluminium profile. Those profiles are a good substation for steel and others when you need to figure out the weight problem with steel profiles. Also, Extruded L shape aluminium profile are highly resistant to corrosion, which adds to its overall value.

Extruded L shape aluminium profile is a processed product of angle aluminum, which means that the Extruded L shape aluminium profile can be called an angle code after being processed. So the difference between angle code and Extruded L shape aluminium profile in the purpose. The main function of angle aluminum is to seal the edge of the tabletop or the edge of mechanical equipment. The function of theExtruded L shape aluminium profile is to be used for L-shaped, cross-shaped or T-shaped connections of aluminum profiles, with high connection strength, flexibility and versatility. There are many kinds of Extruded L shape aluminium profile specifications, and each type of angle aluminum can process many kinds of angle codes. For example, 80*80*10 angle aluminum can be processed into 6060 reinforced right angle code, 8080 reinforced angle code, 9090 reinforced angle code, and 100100 reinforced angle code as required.

Extruded L shape aluminium profile have various styles and shapes, which can be applied in different industries are. Some of which include:

- Scaffolding

- Machine Parts

- Furniture Applications

- Transportation

- Marine

- Solar & Renewable Energy

- Structural components

- Frames

- Others

Guangyuan Aluminum Co., Ltd are well equipped with a Extruded L shape aluminium profile’ dies, which are with a range of 1.0 mm thickness to 8.0 mm thickness for the customer to select. Please see the following detail drawings to find out your preference. Even if your desirable profiles are not on the list in our catalog, as an experienced aluminium extrusion company, we are flexible to make your custom aluminum extrusions base on your dimensions.

Contact Person: Mr. Adam Lin

Contact Info: +86-13630007855 (WeChat/Whatsapp)

Email：gyaluminium@hotmail.com

Extruded L shape aluminium profile Standards										Extruded L shape aluminium profile Standards
NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)	NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)	NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)	NO	A(mm)	B(mm)	T(mm)	Weight(kg/m)
1	12	12	1.5	0.098	22	25	25	1.8	0.237	43	37	37	3.0	0.586	64	50	30	3.0	0.624
2	12.7	25.4	0.8	0.081	23	25.4	12.7	0.8	0.081	44	38	19	2.3	0.342	65	50	35	3.0	0.664
3	15	15	0.8	0.064	24	30	12	2.0	0.218	45	38	25	3.0	0.488	66	50	35	4.0	0.881
4	15	15	2.0	0.152	25	30	20	1.5	0.199	46	38	38	2.0	0.401	67	50	37	5.0	1.120
5	19	19	1.5	0.148	26	30	20	2.0	0.262	47	38	38	3.0	0.593	68	50	40	4.0	0.932
6	20	10	2.0	0.152	27	30	20	3.0	0.382	48	39.5	15	1.5	0.216	69	50	50	2.0	0.531
7	20	12	1.6	0.133	28	30	22	3.7	0.484	49	40	12	1.5	0.206	70	50	50	4.5	1.175
8	20	15	3.0	0.262	29	30	23	2.2	0.303	50	42	20	1.5	0.245	71	50	50	5.0	1.288
9	20	20	0.8	0.086	30	30	25	4.0	0.551	51	40	20	1.6	0.255	72	60	20	3.0	0.626
10	20	20	1.2	0.167	31	30	30	1.0	0.16	52	40	22	4.0	0.629	73	60	60	4.0	1.253
11	20	20	1.6	0.168	32	30	30	1.6	0.253	53	40	25	3.0	0.508	74	68	38	6.0	1.624
12	20	20	2.0	0.207	33	30	30	2.0	0.317	54	40	30	1.4	0.260	75	70	60	8.0	2.664
13	22	14	2.0	0.186	34	30	30	2.2	0.347	55	40	40	1.6	0.341	76	76	76	2.0	0.813
14	22	22	1.0	0.118	35	30	30	2.5	0.393	56	45	20	3.0	0.504	77	76	76	3.0	1.216
15	25	12	3.0	0.267	36	30	30	2.5	0.393	57	45	20	6.0	0.959	78	80	25	2.0	0.558
16	25	15	2.0	0.207	37	30	30	3.0	0.47	58	50	14.8	3.0	0.504	79	80	40	4.9	1.529
17	25	20	1.6	0.189	38	30	40	1.2	0.224	59	50	15	2.0	0.340	80	80.42	40.23	2.13	0.685
18	25	20	3.0	0.341	39	30	40	3.0	0.547	60	50	22	3.3	0.617	81	90	20	1.2	0.354
19	25	25	1.0	0.133	40	32	20	1.6	0.200	61	50	25	1.5	0.299
20	25	25	1.1	0.146	41	32	32	1.3	0.220	62	50	25	5.0	0.949
21	25	25	1.5	0.197	42	36.5	15	1.5	0.204	63	50.8	25.4	1.2	0.245

FAQ

1.Q: Where is your factory located?

A: Our factory is located in Foshan City, China, it takes about an hour from Guangzhou Baiyun Airport to our factory, about an hour from Canton Fair.

2.Q: What is your minimum order quantity?

A: Our minimum order quantity is 500 KGS to 3,000 KGS.

3.Q: What is your standard time to develop new dies?

A: For normal size profiles, it takes about 7-10 to fabricate the dies and make the qualified samples.

4.Q: What is your lead time for production?

A: We can complete the orders of mill finish profiles about 10 days, the orders of anodized/powder coated in 15 to 20 days. We can arrange the shipment within 25 days.
