90 Series Thermally broken aluminum windows

  • - Place of Origin: Foshan, China
  • - Brand Name: GUANG YUAN, DE YUAN NUO
  • - Frame Material: Aluminium alloy
  • - Open Style: Swing
  • - Mesh Material: Stainless steel and fiberglass
  • - Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
  • - Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
  • - Quality Standard: AS2047
  • - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
  • - Glass Standard: AS2208
  • - Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass

PRODUCT Description

Product Description

Color/Patterm Option

Thermally broken aluminum windows use semi-frame structure, the realization of glass, indoor and outdoor use of epdm glass tape (or indoor playing glass tape), making the installation of #90 Series thermally broken aluminum windows more convenient, flexible and safe. Thermally broken aluminum windowss use double selection of air pressure line and square pressure line, in order to meet the appearance requirements of different customers. #90 Series thermally broken aluminum windows has full set of hardware imported custom hardware, locking system using four-point lock, which make thermally broken aluminum windows much more security, built-in steel mesh screen fan; in the play wind, rain, while achieving ventilation, mosquito, anti-theft function.

#90 Series thermally broken aluminum windows has outstanding ozone resistance, excellent thermal insulation performance, standard casement windows have excellent waterproof and sound insulation performance, excellent cold resistance and chemical resistance interweaving and corrosive effect, standard casement windows screen integrated casement window comes standard with imported locks, strong hinges, high-end atmospheric grade , Invisible hinge is used to increase the opening space of the standard casement windows, increase the air flow, and make #90 Series thermally broken aluminum windows more fashionable and beautiful

Product Name

90 Series Thermally broken aluminum windows

Manufacturing Standard

AS2047

Quality Certificate

ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS

Aluminium Profiles

6063-T5 high quality thermal/non-thermal break aluminium profiles

Profiles Thickness

1.4mm for windows, 2.0mm for doors

Surface Treatment

Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color

Color

Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors

Glazing Type

tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing

Glazing Thickness

Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm



Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm

Mesh

Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen

Retractable screen, fixed screen and sliding screen

Sealing

Chinese famous brand silicone and EPDM strips

Hardware

KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH

Architrave

Depending on the customer’s requirements

Guarantee

10 years to 20 years

Application

Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses

MOQ

1 set

Packing Details

EPE foam packing and wooden crate packing

Payment Term

1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.

2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.

3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.

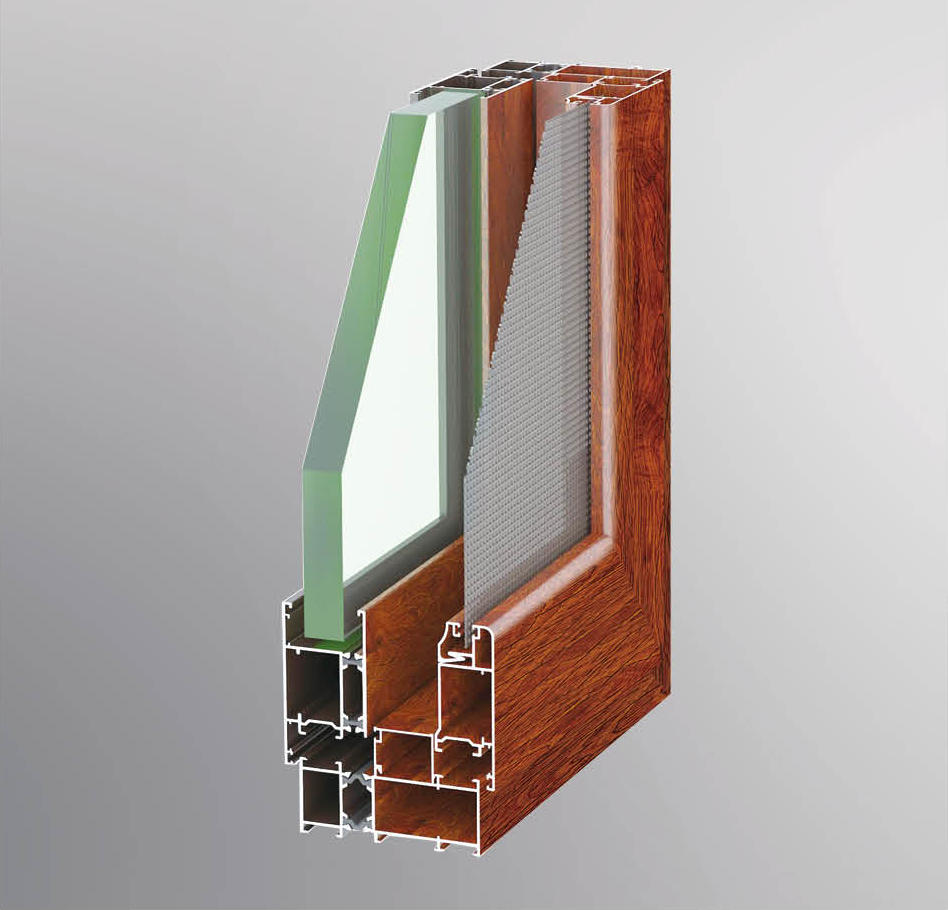

STRUCTURAL PARAMETERS

Profile Thickness

Frame Depth

Sash Width

2.0mm

138mm

90mm

PERFORMANCE PARAMETERS

Heat Insulation(m2·K)

Sound Insulation(DB)

Water Tightness(PA)

Air Tightness

Wind Load(KPa)

4W

45DB

700PA

4.5≤92>3.0

3.5≤P3>4.0

Level 4

Level 4

Level 6

Level 8

Level 8

SHIPMENT

Standard Loading Quantity

1*20GP

1*40HQ

Max. length: 5.85 meters

Max. length: 12 meters

200 square meters

400 square meters

Standard Loading Port

HUANGPU / NANSHA / YANTIAN / SHEKOU

Shipping Methods

Ocean shipment, air shipment, land transportation and multi-transportation, etc.
