90/138 Series Thermal-break Sliding Window
- - Place of Origin: Foshan, China
- - Brand Name: GUANG YUAN, DE YUAN NUO
- - Frame Material: Aluminium alloy
- - Open Style: Swing
- - Mesh Material: Stainless steel and fiberglass
- - Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
- - Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
- - Quality Standard: AS2047
- - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- - Glass Standard: AS2208
- - Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass
PRODUCT Description

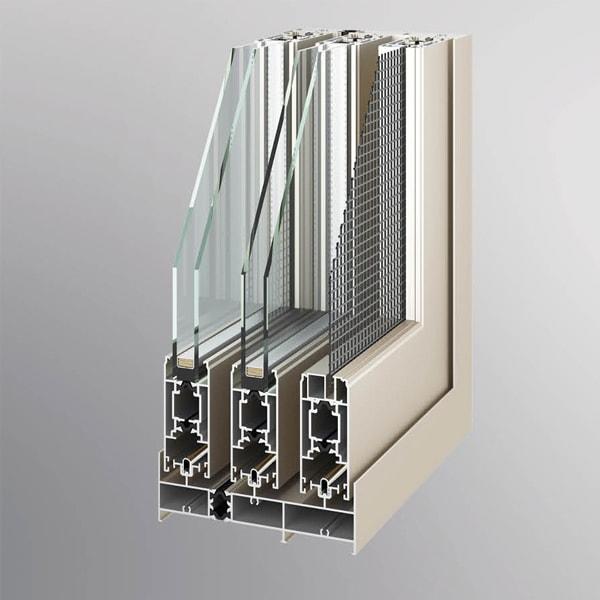

#90/138 Series Thermal-break Sliding Window has simple European style design with smooth lines and clear ridges. Meet the aesthetic requirements of modern fashion decoration, aluminum window heat insulation have three-cavity broken bridge profile structure can be used for both interior and exterior color and double decoration effect. Under high rail design, equipped with covered stainless-steel track, durable and ensure not fray for 20 years. #90/138 Series Thermal-break Sliding Window’s silicone seal tops are used for watertight, airtight and soundproofing. There are two tracks or three tracks to choose for standard sliding window, which can realize the configuration of two tracks with glass, three tracks with glass, three tracks with gold steel net.
aluminum window heat insulation have a variety of surface treatment technologies such as powder coating, anodizing, electrophoretic coating, wood grain, etc., and standard sliding window has a variety of color options to meet the needs of various architectural decorations. aluminum window heat insulation design does not occupy space, and the sliding wide rail design is conducive to bearing. With the stability of standard sliding window sash, the heat insulation strip used has high strength, high temperature and low temperature resistance, improves the thermal insulation of the entire window, #90/138 Series Thermal-break Sliding Window are easy to use, they have large opening area which is beautiful and modern.
Contact Person: Mr.Daniel Chin
Contact Info: +86-18144716669 (WeChat/Whatsapp)
Email:137499680@qq.com
Product Name |
90/138 Series Thermal-break Sliding Window |
|||||
Manufacturing Standard |
AS2047 |
|||||
Quality Certificate |
ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS |
|||||
Aluminium Profiles |
6063-T5 high quality thermal/non-thermal break aluminium profiles |
|||||
Profiles Thickness |
1.4mm for windows, 2.0mm for doors |
|||||
Surface Treatment |
Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color |
|||||
Color |
Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors |
|||||
Glazing Type |
tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing |
|||||
Glazing Thickness |
Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm |
|||||
|
Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm |
|||||
Mesh |
Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen |
|||||
|
Retractable screen, fixed screen and sliding screen |
|||||
Sealing |
Chinese famous brand silicone and EPDM strips |
|||||
Hardware |
KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH |
|||||
Architrave |
Depending on the customer’s requirements |
|||||
Guarantee |
10 years to 20 years |
|||||
Application |
Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses |
|||||
MOQ |
1 set |
|||||
Packing Details |
EPE foam packing and wooden crate packing |
|||||
Payment Term |
1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container. |
|||||
|
2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container. |
|||||
|
3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L. |
|||||
STRUCTURAL PARAMETERS |
||||||
Profile Thickness |
Frame Depth |
Sash Width |
||||
2.0mm |
138mm |
90mm |
||||
PERFORMANCE PARAMETERS |
||||||
Heat Insulation(m2·K) |
Sound Insulation(DB) |
Water Tightness(PA) |
Air Tightness |
Wind Load(KPa) |
||
4W |
45DB |
700PA |
4.5≤92>3.0 |
3.5≤P3>4.0 |
||
Level 4 |
Level 4 |
Level 6 |
Level 8 |
Level 8 |
||
SHIPMENT |
||||||
Standard Loading Quantity |
1*20GP |
1*40HQ |
||||
|
Max. length: 5.85 meters |
Max. length: 12 meters |
||||
|
200 square meters |
400 square meters |
||||
Standard Loading Port |
HUANGPU / NANSHA / YANTIAN / SHEKOU |
|||||
Shipping Methods |
Ocean shipment, air shipment, land transportation and multi-transportation, etc. |
FAQ
1. Are you a manufacturer or a trading company?
--- We are aluminium extrusion company specialized in the production of aluminium profiles and aluminium windows since 1993. And you are warmly welcomed to visit our factory.
2.What kinds of surface treatments can your company complete?
--- We can complete different kinds of surface treatments including mill finish, anodizing, electrophoresis, powder coating, wooden color, fluorocarbon coating, polishing and brushed, etc.
3. Can you produce customized windows?
--- Yes, we can produce the windows as per customers’ window specifications.
4. What is the lead time for mass production?
--- The time for mass production is around 20~45 days.
5. How can you ensure high quality?
--- We use primary aluminium raw materials to make aluminium billets by ourselves, never mixing scrap to lower the cost.
--- Our QC are strict with final product inspection and only accept qualified products.
--- All the products are produced according international standard.
