90/138 Series Sliding Window

  • - Place of Origin: Foshan, China
  • - Brand Name: GUANG YUAN, DE YUAN NUO
  • - Frame Material: Aluminium alloy
  • - Open Style: Swing
  • - Mesh Material: Stainless steel and fiberglass
  • - Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
  • - Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
  • - Quality Standard: AS2047
  • - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
  • - Glass Standard: AS2208
  • - Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass

PRODUCT Description

Product Description

Carpet Crimping Profile

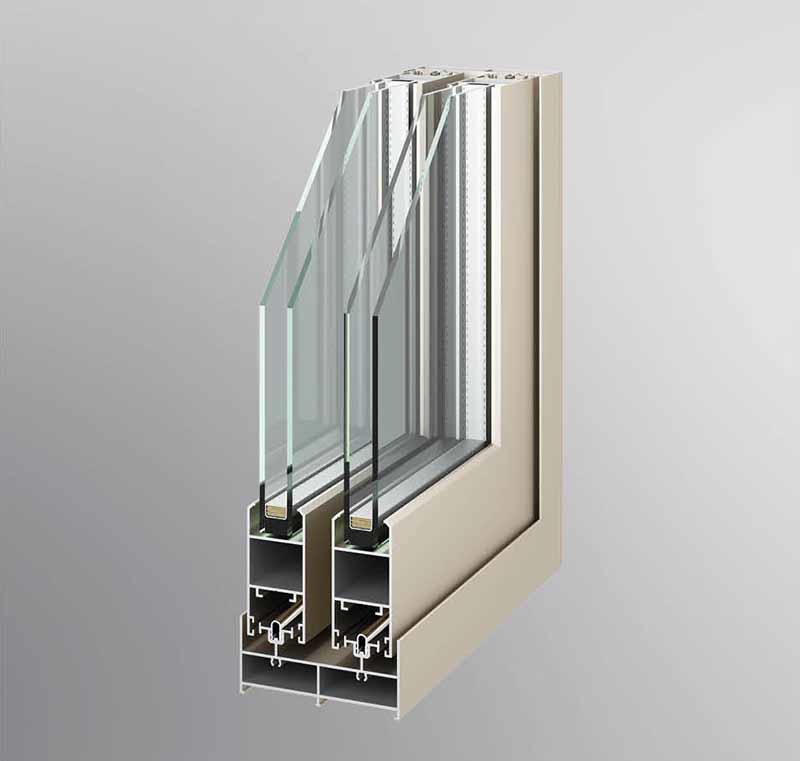

The advantages of #90/138 Series Sliding Window are simple, beautiful, large window width, large glass area, wide field of vision, and high lighting efficiency. Commercial aluminum sliding window is easy to clean, flexible, safe and reliable.Modern aluminium sliding system has a long service life, opens in a plane, takes up less space, and is convenient to install gauze. #90/138 Series Sliding Window adopts high-precision profiles, the profile thickness is 1.4mm, and it is equipped with 5+19A+5 double-layer tempered glass, which can be matched with lattice strips and craft glass. The design of the sliding system does not take up space, and the design of the sliding wide rail is conducive to the stability of load-bearing and window sashes.

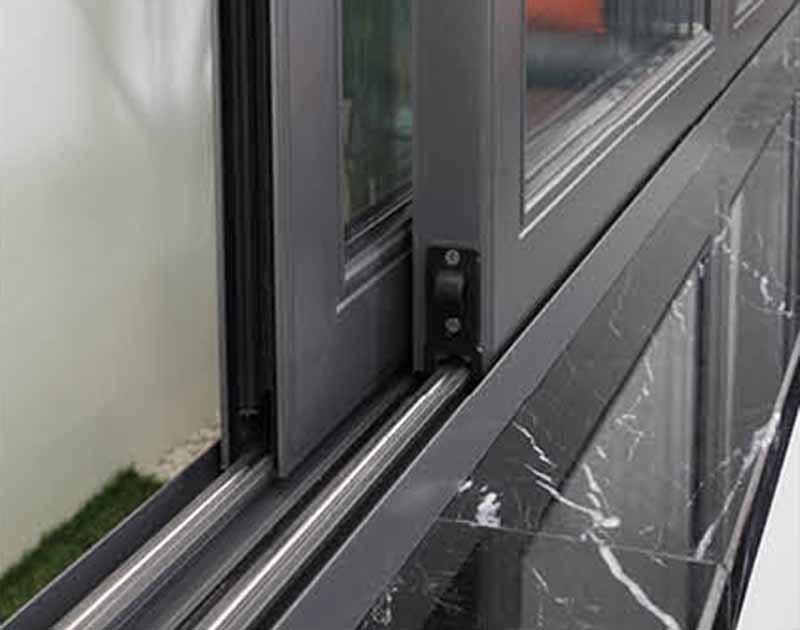

Modern aluminium sliding system adopts the sliding track on the window frame with the window sash equipped with pulleys. The advantage of this commercial aluminum sliding window is that the window does not occupy additional space regardless of the opening and closing state, and the structure is relatively simple.  #90/138 Series Sliding Window is generally most suitable for high-rise buildings with more than two floors. Because the opening method is a sliding way, commercial aluminum sliding window will not be outside like a casement window. To avoid falling objects from the window, modern aluminium sliding system are most suitable for high-rise buildings.

Product Name

90/138 Series Sliding Window

Manufacturing Standard

AS2047

Quality Certificate

ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS

Aluminium Profiles

6063-T5 high quality thermal/non-thermal break aluminium profiles

Profiles Thickness

1.4mm for windows, 2.0mm for doors

Surface Treatment

Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color

Color

Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors

Glazing Type

tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing

Glazing Thickness

Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm



Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm

Mesh

Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen



Retractable screen, fixed screen and sliding screen

Sealing

Chinese famous brand silicone and EPDM strips

Hardware

KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH

Architrave

Depending on the customer’s requirements

Guarantee

10 years to 20 years

Application

Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses

MOQ

1 set

Packing Details

EPE foam packing and wooden crate packing

Payment Term

1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.



2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.



3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.

STRUCTURAL PARAMETERS

Profile Thickness

Frame Depth

Sash Width

2.0mm

138mm

90mm

PERFORMANCE PARAMETERS

Heat Insulation(m2·K)

Sound Insulation(DB)

Water Tightness(PA)

Air Tightness

Wind Load(KPa)

4W

45DB

700PA

4.5≤92>3.0

3.5≤P3>4.0

Level 4

Level 4

Level 6

Level 8

Level 8

SHIPMENT

Standard Loading Quantity

1*20GP

1*40HQ



Max. length: 5.85 meters

Max. length: 12 meters



200 square meters

400 square meters

Standard Loading Port

HUANGPU / NANSHA / YANTIAN / SHEKOU

Shipping Methods

Ocean shipment, air shipment, land transportation and multi-transportation, etc.

FAQ

1. Are you a manufacturer or a trading company?

--- We are aluminium extrusion company specialized in the production of aluminium profiles and aluminium windows since 1993. And you are warmly welcomed to visit our factory.

2.What kinds of surface treatments can your company complete?

--- We can complete different kinds of surface treatments including mill finish, anodizing, electrophoresis, powder coating, wooden color, fluorocarbon coating, polishing and brushed, etc.

3. Can you produce customized windows?

--- Yes, we can produce the windows as per customers’ window specifications.

4. What is the lead time for mass production?

--- The time for mass production is around 20~45 days.

5. How can you ensure high quality?

--- We use primary aluminium raw materials to make aluminium billets by ourselves, never mixing scrap to lower the cost.

--- Our QC are strict with final product inspection and only accept qualified products.

--- All the products are produced according international standard.
