88 DESHANG Series aluminium casement doors

  • - Place of Origin: Foshan, China
  • - Brand Name: GUANG YUAN, DE YUAN NUO
  • - Frame Material: Aluminium alloy
  • - Open Style: Swing
  • - Mesh Material: Stainless steel and fiberglass
  • - Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
  • - Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
  • - Quality Standard: AS2047
  • - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
  • - Glass Standard: AS2208
  • - Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass

PRODUCT Description

Product Description

Color/Patterm Option

Aluminium swing door refers to a door with hinges (hinges) installed on the side of the door, opening inward (left inward, right inward) or outward (left outward, right outward). It consists of door cover, hinge, door leaf, lock and so on.

When decorating Aluminium bathroom door, people usually choose aluminum hinged doors. Let ’s take a look at the characteristics of #88 DESHANG Series aluminium casement doors.

The first feature of the Aluminium swing door is healthy and environmental protection, because heavy paint is not used, #88 DESHANG Series aluminium casement doors will not cause pollution to the home environment. The aluminium hinged door will not deform or discolor under direct sunlight, and the performance is quite stable.

The second feature of the Aluminium swing door is its simplicity and lightness. The lines on the entire facade are very soft, which gives the living room a warm feeling without being too serious. #88 DESHANG Series aluminium casement doors has also been widely praised for its appearance.

The third feature of the Aluminium swing door is its affordable price. It does not use all high-grade wood like the original wooden door, which causes the price to surge and become a luxury.

The advantage of the Aluminium swing door is that the sealing performance is good, the sound insulation effect is guaranteed, the overall permeability is strong, and the space is good and noble. But Aluminium bathroom door also brings the weakness of insufficient space circulation. In view of this situation, the ventilator that can be used when closing the #88 DESHANG Series aluminium casement doors does not affect the sound insulation, and ensures the exchange of indoor and outdoor air. The ventilator can be installed in a small space between the window and the window line.

Product Name

88 DESHANG Series aluminium casement doors

Manufacturing Standard

AS2047

Quality Certificate

ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS

Aluminium Profiles

6063-T5 high quality thermal/non-thermal break aluminium profiles

Profiles Thickness

1.4mm for windows, 2.0mm for doors

Surface Treatment

Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color

Color

Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors

Glazing Type

tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing

Glazing Thickness

Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm



Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm

Mesh

Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen

Retractable screen, fixed screen and sliding screen

Sealing

Chinese famous brand silicone and EPDM strips

Hardware

KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH

Architrave

Depending on the customer’s requirements

Guarantee

10 years to 20 years

Application

Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses

MOQ

1 set

Packing Details

EPE foam packing and wooden crate packing

Payment Term

1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.

2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.

3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.

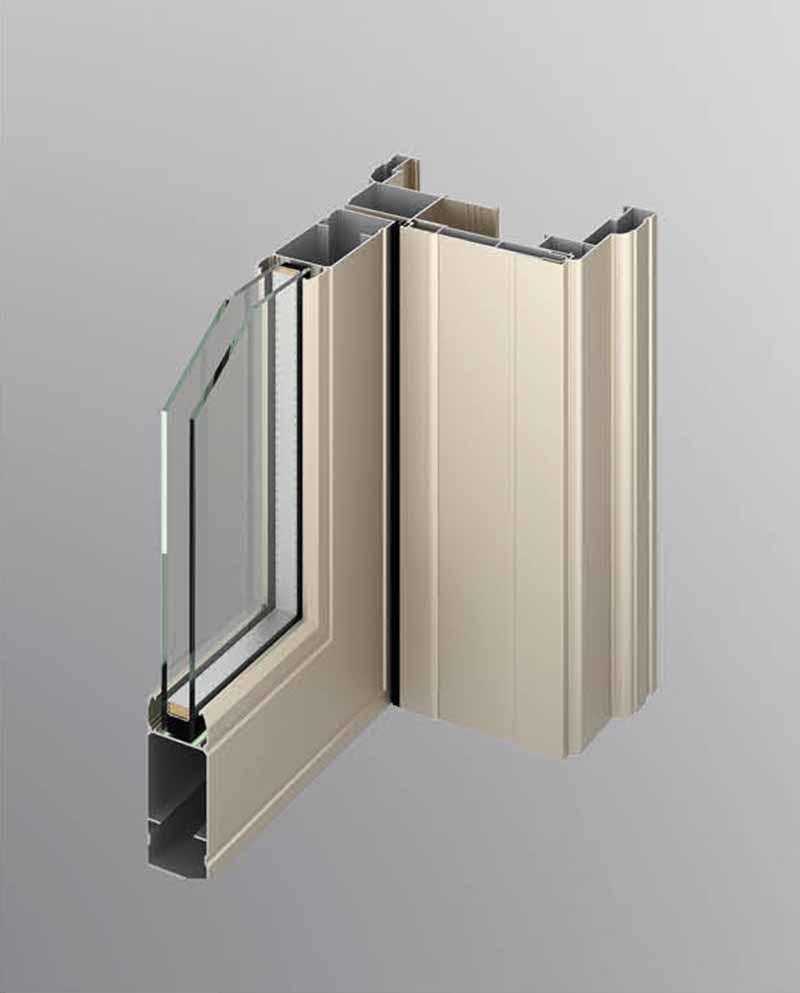

STRUCTURAL PARAMETERS

Profile Thickness

Frame Depth

Sash Width

2.0mm

138mm

90mm

PERFORMANCE PARAMETERS

Heat Insulation(m2·K)

Sound Insulation(DB)

Water Tightness(PA)

Air Tightness

Wind Load(KPa)

4W

45DB

700PA

4.5≤92>3.0

3.5≤P3>4.0

Level 4

Level 4

Level 6

Level 8

Level 8

SHIPMENT

Standard Loading Quantity

1*20GP

1*40HQ

Max. length: 5.85 meters

Max. length: 12 meters

200 square meters

400 square meters

Standard Loading Port

HUANGPU / NANSHA / YANTIAN / SHEKOU

Shipping Methods

Ocean shipment, air shipment, land transportation and multi-transportation, etc.
