55 Series Thermal break casement windows

- Place of Origin: Foshan, China
- Brand Name: GUANG YUAN, DE YUAN NUO
- Frame Material: Aluminium alloy
- Open Style: Swing
- Mesh Material: Stainless steel and fiberglass
- Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
- Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
- Quality Standard: AS2047
- Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
- Glass Standard: AS2208
- Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass

PRODUCT Description

hermal break aluminum windows are very good and fantastic, at the same time as the external aluminum alloy glass fan with thermal-break, #55 Series Thermal break casement windows have national appearance patents and adopts Cadillac design, with clear edges and corners and beautiful lines. thermal break aluminum windows show a bold personality, and an unusual temperament. Modern casement windows usually equipped with a 4-point lock, which can prevent theft and prevent flooding. #55 Series Thermal break casement window is flexible operation, feel comfortable, easy to use. The use of automotive-grade foam composite tape, make thermal break aluminum windows better watertight, airtight and sound insulation performance. Thermal break aluminum windows can be used for swing door, opposite door and child door, and it can be equipped with protective aluminum grille.

#55 Series Thermal break casement windows using imported hardware accessories, forging with a large forging machine, high-strength mechanical force makes the density of the material extremely high. modern casement windows all hardware accessories are processed by several precision machine tools, so that the product is as bright as a mirror, and the electric layer is bright and uniform. #55 Series Thermal break casement windows is natural color, excellent density, thick coating, 5+19A+5 double-layer hollow tempered glass, modern casement windows can be matched with grids, magnetron shutters, and also can be opened inside, outside, and horizontal pivoting function.

Contact Person: Mr. Adam Lin

Contact Info: +86-13630007855 (WeChat/Whatsapp)

Email：gyaluminium@hotmail.com

Product Name	55 Series Thermal break casement windows
Manufacturing Standard	AS2047
Quality Certificate	ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
Aluminium Profiles	6063-T5 high quality thermal/non-thermal break aluminium profiles
Profiles Thickness	1.4mm for windows, 2.0mm for doors
Surface Treatment	Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color
Color	Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
Glazing Type	tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing
Glazing Thickness	Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm
	Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm
Mesh	Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen
	Retractable screen, fixed screen and sliding screen
Sealing	Chinese famous brand silicone and EPDM strips
Hardware	KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH
Architrave	Depending on the customer’s requirements
Guarantee	10 years to 20 years
Application	Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses
MOQ	1 set
Packing Details	EPE foam packing and wooden crate packing
Payment Term	1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.
	2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.
	3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.

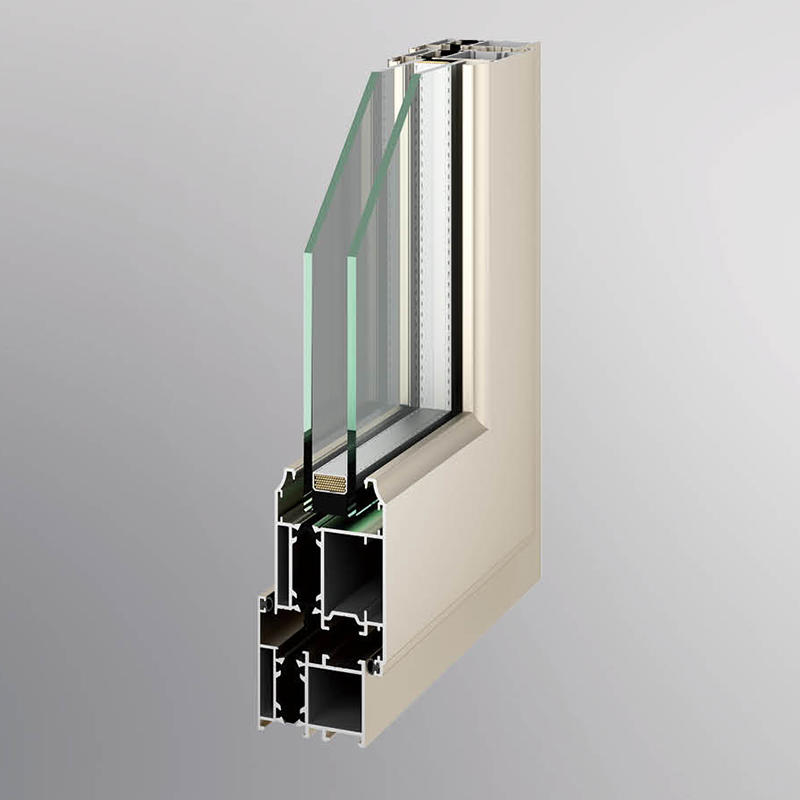

STRUCTURAL PARAMETERS
Profile Thickness	Frame Depth					Sash Width
2.0mm	138mm					90mm
PERFORMANCE PARAMETERS
Heat Insulation(m2·K)	Sound Insulation(DB)		Water Tightness(PA)	Air Tightness		Wind Load(KPa)
4W	45DB		700PA	4.5≤92>3.0		3.5≤P3>4.0
Level 4	Level 4		Level 6	Level 8		Level 8
SHIPMENT
Standard Loading Quantity		1*20GP			1*40HQ
		Max. length: 5.85 meters			Max. length: 12 meters
		200 square meters			400 square meters
Standard Loading Port		HUANGPU / NANSHA / YANTIAN / SHEKOU
Shipping Methods		Ocean shipment, air shipment, land transportation and multi-transportation, etc.
