138 Series Thermal break casement window

product-info-mod4 FEATURES

  • - Place of Origin: Foshan, China
  • - Brand Name: GUANG YUAN, DE YUAN NUO
  • - Model Number: GY001
  • - Frame Material: Aluminium alloy
  • - Open Style: Swing
  • - Mesh Material: Stainless steel and fiberglass
  • - Surface Treatment: Anodizing, electrophoresis, powder coating, wood grain, fluorocarbon coating
  • - Color: Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors
  • - Quality Standard: AS2047
  • - Quality Certificate: ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS
  • - Glass Standard: AS2208
  • - Glass Type: tempered glass, tinted glass, frosted glass, reflective glass, laminated glass and LOW-E glass

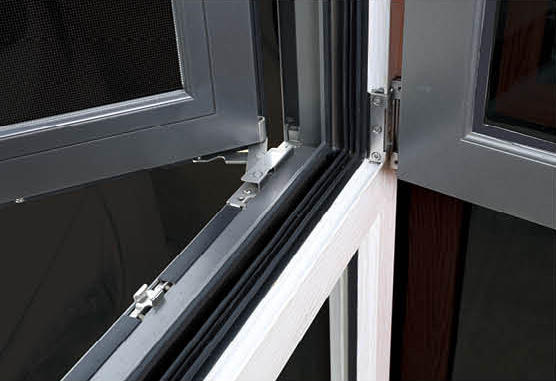

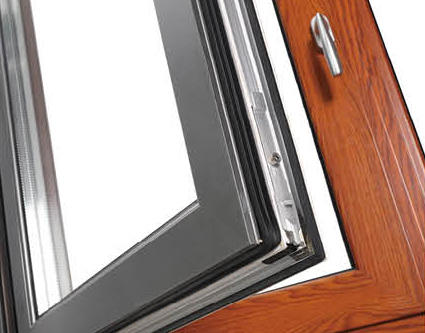

Commercial casement windows built-in broken aluminum alloy glass fan at the same time, external gold steel mesh screen sash; in the anti-mosquito, anti-theft, but also can achieve internal ventilation. Commercial casement windows gives a very comfortable living experience. #138 Series Thermal-break casement window has national appearance patents and adopts Cadillac design, with clear edges and corners and beautiful lines. European style casement windows shows a bold personality, and an unusual temperament. #138 Series Thermal-break casement window equipped with a 4-point lock, which can prevent theft and prevent flooding. And flexible operation, feel comfortable, easy to use. The use of automotive-grade foam composite tape, watertight, airtight and sound insulation better.

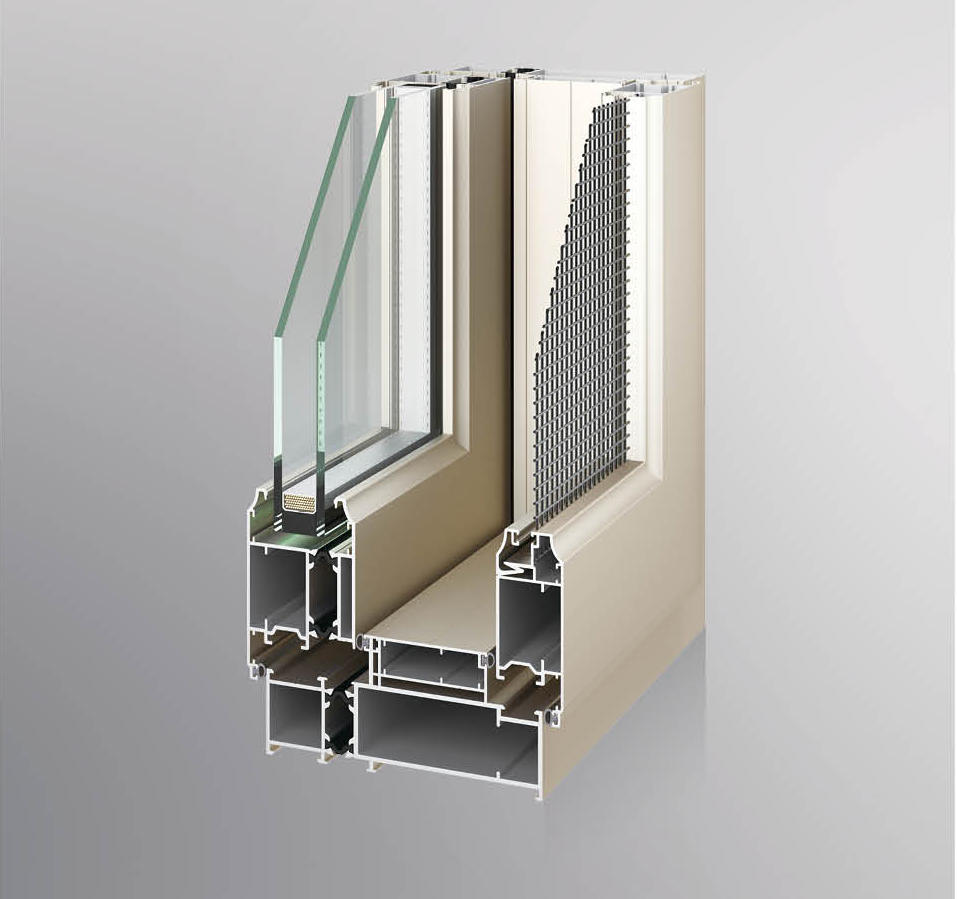

High quality profiles create high quality windows, making commercial casement windows light weight, high strength, precise and accurate processing and assembly, so they are light and flexible to open and close, commercial casement windows are not too noisy, easy to use and maintain, better heat and sound insulation effect, corrosion resistance, small deformation, european style casement windows have strong fire resistance, long service life, can be matched with various hardware brands at home and abroad, multi-chamber design profile structure, #138 Series Thermal-break casement window with high strength, multi-point lock, good anti-theft performance, three-sealed waterproof, good air tightness effect , European-style decorative lines are integrated with window covers and furniture.

Product Name

138 Series Thermal break casement window

Manufacturing Standard

AS2047

Quality Certificate

ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS

Aluminium Profiles

6063-T5 high quality thermal/non-thermal break aluminium profiles

Profiles Thickness

1.4mm for windows, 2.0mm for doors

Surface Treatment

Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color

Color

Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors

Glazing Type

tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing

Glazing Thickness

Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm



Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm

Mesh

Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen



Retractable screen, fixed screen and sliding screen

Sealing

Chinese famous brand silicone and EPDM strips

Hardware

KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH

Architrave

Depending on the customer’s requirements

Guarantee

10 years to 20 years

Application

Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses

MOQ

1 set

Packing Details

EPE foam packing and wooden crate packing

Payment Term

1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.



2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.



3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.

STRUCTURAL PARAMETERS

Profile Thickness

Frame Depth

Sash Width

2.0mm

138mm

90mm

PERFORMANCE PARAMETERS

Heat Insulation(m2·K)

Sound Insulation(DB)

Water Tightness(PA)

Air Tightness

Wind Load(KPa)

4W

45DB

700PA

4.5≤92>3.0

3.5≤P3>4.0

Level 4

Level 4

Level 6

Level 8

Level 8

FAQ

1. Q: Where is your factory located?

A: Our factory is located in Foshan City, China, it takes about an hour from Guangzhou Baiyun Airport to our factory, about an hour from Canton Fair.

2. Q: What is your minimum order quantity?

A: Our minimum order quantity is 1 set.

3. Q: What are the colors available?

A: Our colors are available for our factory colors stock, and can be customized as per customer’s color sample.

4. Q: What is your lead time for production?

A: We can complete the order around 20-45 days.

5. Q: Did you export aluminum windows to overseas countries?

A: We have exported our profiles to South East Asia, Middle East, East Europe, South America and Africa, etc.
